PRESSURE DROP — The graph above shows the expected pressure loss per foot of bed depth as a function of flow rate at various temperatures. |
|
|
BACKWASH — The graph above shows the expansion characteristics as a function of flow rate at various temperatures. |
|
|
APPLICATIONS |
Softening |
|
SOFTENING CAPACITY — Capacity is based on 2:1 Ca:Mg ratio, 500 ppm TDS as CaCO3, 0.2% hardness in the salt, and 10% brine concentration applied co-currently through the resin over 30 minutes. No engineering downgrade has been applied. |
|
Demineralization
ProSoft Premium (Hydrogen Form) can be used as the cation component in separate bed and mixed bed demineralization applications where a hydrogen form cation resin is coupled with a hydroxide form anion resin. Regeneration is accomplished with stepwise sulfuric acid or with hydrochloric acid.applied. |
|
|
OPERATING CAPACITY — Capacity is based on 500 ppm of stated salt (as CaCO3) with 0% alkalinity, 36 inch bed depth, flow rate of 2 to 4 gpm per cu.ft., and a minimum of 30 minutes chemical injection time. Sulfuric acid concentration must be stepwise when calcium concentration exceeds 20% of total cations. No engineering downgrade has been applied. |
|
Iron Removal
ProSoft Premium has a good capacity for ferrous iron. Iron content in the feedwater should not be more than 1 mg/L Fe per each 17 mg/L of hardness. |
|
Amonia Removal
ProSoft Premium is slightly selective for ammonia compared to sodium, but hardness is much more preferred. Ammonia is not ionized at pH above 9 and is not well removed when the pH is significantly alkaline. |
|
|
ProSoft™ is a trademark of Safe Water Technologies, Inc. |
|
|
|
Features: |
|
|
• |
Ideal for industrial softeners and demineralizers |
|
|
• |
Uniform particle size, low pressure drop |
|
|
• |
Superior physical stability |
|
|
• |
Low color throw |
|
|
• |
Conforms to paragraph 21CFR173.25 of the Food Additives Regulations of the US FDA |
|
|
• |
Certified to NSF/ANSI Standard 44/61 * |
|
|
|
PART NUMBER |
Sodium Form |
ER10002 |
Hydrogen Form |
ER10004 |
|
|
PHYSICAL PROPERTIES |
Polymer Structure |
Styrene/DVB |
Polymer Type |
Gel |
Functional Group |
Sulfonic Acid |
Physical Form |

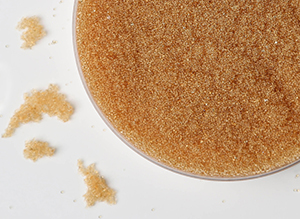

Spherical beads |
Resin Color |
Amber |
Ionic Form (as shipped) |
Sodium or Hydrogen |
Total Capacity
Sodium Form
Hydrogen Form |
> 2.0 meq/mL
> 1.8 meq/mL |
Water Retention
Sodium Form
Hydrogen Form |
42 to 49%
47 to 56% |
Swelling (Na to H) |
5 to 9% |
Screen Size Distribution |
16 to 50 (US mesh) |
Maximum Fines Content |
1% (< 50 mesh) |
Maximum Sphericity |
93% |
Uniformity Coefficient |
1.6 approx. |
Approx. Ship. Wt.
Sodium Form
Hydrogen Form |
52 lb/cu.ft.
50 lb/cu.ft. |
|
|
SUGGESTED OPERATING CONDITIONS |
Maximum Temperature
Sodium Form
Hydrogen Form |
280°F (138°C)
265°F (130°C) |
Minimum Bed Depth |
24 inches |
Backwash Expansion |
25 to 50% |
Maximum Pressure Loss |
25 psi |
Operating pH Range |
0 to 14 |
Regenerant Concentration
Salt Cycle
Hydrogen Cycle (Option 1)
Hydrogen Cycle (Option 2) |
10 to 15% NaCl
5 to 10% HCl
1 to 8% H2SO4 |
Regenerant Level |
4 to 15 lb/cu.ft. |
Regenerant Flow Rate |
0.5 to 1.5 gpm/cu.ft. |
Regenerant Contact Time |
> 20 minutes |
Displacement Flow Rate |
Same as dilution
water |
Displacement Volume |
10 to 15 gal/cu.ft. |
Rinse Flow Rate |
Same as service flow |
Rinse Volume |
35 to 60 gal/cu.ft. |
Service Flow Rate |
1 to 10 gpm/cu.ft. |
|
|
|
CAUTION: DO NOT MIX ION EXCHANGE RESINS WITH STRONG OXIDIZING AGENTS. Nitric acid and other strong oxidizing agents can cause explosive reactions when mixed with organic materials such as ion exchange resins.
|
|
