swtwater.com System-Guard™ Depth Filter Cartridges
System-Guard Depth Filter Cartridge
Click on the image above to view larger image.

SWT’s System-Guard™ Filter Cartridges have 65% more dirt-holding capacity than our standard spun polypropylene cartridges. New microfiber technology provides a tightly controlled graduated microporous structure for greater filtration efficiency¹ with less pressure drop² than any other spun polypropylene cartridge.
This is the best performing sediment depth cartridge SWT has ever offered and is FDA compliant. It is specifically designed as a reverse osmosis prefilter, but can be used in all water treatment applications.

1. 90% @ cartridge’s micron rating.
2. 5 micron Cartridges: Less than 0.6 psid @ 5 gpm per 10 inch length in clear water
1 micron Cartridges: Less than 0.9 psid @ 5 gpm per 10 inch length in clear water


Max. Operating Temperature (water): 160ºF (71ºC) @ 15 psid (1.03 bar)
Max. Operating Differential Pressure (water): 35 psid (2.41 bar) @ 100ºF (38ºC)


System-Guard™ Sediment Cartridges, 2.5 x 9.875 inch, to fit most standard 10 inch housings

Part Number

Description Micron
(Nominal)
Case
Qty.
Weight
Lbs.
SO62001 Thermally-Welded Blown Polypropylene Microfibers 1 40 10
SO62005 Thermally-Welded Blown Polypropylene Microfibers 5 40 10

System-Guard™ Sediment Cartridges, 2.5 x 20 inch, to fit most standard 20 inch housings

Part Number

Description Micron
(Nominal)
Case
Qty.
Weight
Lbs.
SO72001 Thermally-Welded Blown Polypropylene Microfibers 1 20 19
SO72005 Thermally-Welded Blown Polypropylene Microfibers 5 20 19

System-Guard™ Sediment Cartridges, 2.5 x 30 inch, to fit most standard 30 inch housings

Part Number

Description Micron
(Nominal)
Case
Qty.
Weight
Lbs.
SO82001 Thermally-Welded Blown Polypropylene Microfibers 1 20 28
SO82005 Thermally-Welded Blown Polypropylene Microfibers 5 20 28

System-Guard™ Sediment Cartridges, 2.5 x 40 inch, to fit most standard 40 inch housings

Part Number

Description Micron
(Nominal)
Case
Qty.
Weight
Lbs.
SO92001 Thermally-Welded Blown Polypropylene Microfibers 1 20 37
SO92005 Thermally-Welded Blown Polypropylene Microfibers 5 20 37

NOTE: Cartridge lengths of 9.75, 10, 19.5, and 29.25 inch are also available.

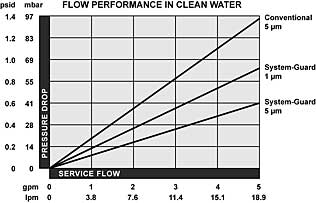

System-Guard Depth Filter Cartridge Dirt Holding Capacity System-Guard Depth Filter Cartridge Flow Performance in Clean Water
Click on an image above to view larger image.
