SWT’s Steel Tanks are UL classified for drinking water system components in accordance with NSF/ANSI Standard 61-(1992) 7N44. They come fully lined and primed/colored to meet NSF/ANSI Standard 61 for coatings. They are available in non-code or ASME code. ASME code steel tanks are produced in accordance with Section VIII, Division 1 of the ASME Boiler and Pressure Vessel Code.
All steel tanks have two large top and bottom access openings to simplify distributor system assembly; inlet and outlet openings located at the top-side wall and center-bottom of the tank; and a top-center spud to bleed air. All tanks larger than 36 inches in diameter come standard with lift lugs and a 12 x 16 inch covered manway. SWT's steel tanks are durable, rustproofed, and built to last. Made in USA.
|
| |
| • |
Meets all requirements for both FDA and US Department of Agriculture |
| • |
Flanged and Dished (F&D) domes standard on non-code tanks;
2:1 semi-eliptical domes standard on ASME code tanks |
| • |
100 psi maximum operating pressure |
| • |
140°F maximum operating temperature |
| • |
Standardized equipment means faster shipping |
| • |
Custom designs available |
|
|
|
| |
| |
 |
| Steel Tanks Configuration Worksheet (Fillable PDF Form) |
| This fillable PDF form is designed to make everyone's life easier. When requesting new steel tanks, all of the relevant information is included in this easy-to-complete form. |
| INSTRUCTIONS: |
| 1. |
Download the PDF form to your computer. |
| 2. |
Open the form in your PDF Reader application. |
| 3. |
Fill in the relevant fields (light blue color areas) using your keyboard. |
| 4. |
Save a copy of the completed form to your computer. |
| 5. |
Email the completed copy to info@swtwater.com, and we'll process your request lickety-split and get back to you with the pertinent follow-up information. |
|
|
|
| |
| |

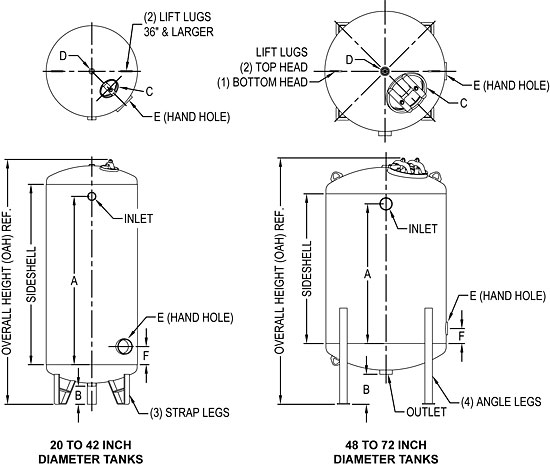

Non-Code Steel Tanks Specifications
(Download PDF to view ALL dimensions) |
 |
| |
Part
Number |
Tank
Size
Inches |
Overall
Height
Inches |
Total
Volume
Cu. Ft. |
Head *
Volume
Cu. Ft. |
Inlet
and
Outlet |
Top
Access
(Dim C)
Inches |
Top
Spud
(Dim D)
Inches |
Bottom
Access
(Dim E)
Inches |
Approx.
Weight
Lbs. |
| UQ-2054(?)-28 |
20 x 54 |
70 |
10 |
0.5 |
2" NPS |
4 x 6 |
1" NPT |
4 x 6 |
155 |
| UQ-2060(?)-2B |
20 x 60 |
76 |
11 |
0.5 |
2" NPS |
4 x 6 |
1" NPT |
4 x 6 |
170 |
| UQ-2454(?)-2B |
24 x 54 |
72 |
15 |
0.8 |
2" NPS |
4 x 6 |
1" NPT |
4 x 6 |
184 |
| UQ-2460(?)-2B |
24 x 60 |
78 |
17 |
0.8 |
2" NPS |
4 x 6 |
1" NPT |
4 x 6 |
197 |
| UQ-3054(?)-2B |
30 x 54 |
76 |
25 |
1.9 |
2" NPS |
4 x 6 |
1" NPT |
4 x 6 |
245 |
| UQ-3060(?)-2B |
30 x 60 |
82 |
27 |
1.9 |
2" NPS |
4 x 6 |
1" NPT |
4 x 6 |
255 |
| UQ-3054(?)-3B |
30 x 54 |
79 |
25 |
1.9 |
3" NPT |
4 x 6 |
1" NPT |
6 x 8 |
260 |
| UQ-3060(?)-3B |
30 x 60 |
85 |
27 |
1.9 |
3" NPT |
4 x 6 |
1" NPT |
6 x 8 |
275 |
| UQ-3660(?)-3B |
36 x 60 |
89 |
40 |
3.0 |
3" NPT |
12 x 16 |
1" NPT |
6 x 8 |
465 |
| UQ-3672(?)-3B |
36 x 72 |
101 |
47 |
3.0 |
3" NPT |
12 x 16 |
1" NPT |
6 x 8 |
575 |
| UQ-4260(?)-3B |
42 x 60 |
91 |
55 |
4.6 |
3" NPT |
12 x 16 |
1" NPT |
6 x 8 |
595 |
| UQ-4272(?)-3B |
42 x 72 |
103 |
65 |
4.6 |
3" NPT |
12 x 16 |
1" NPT |
6 x 8 |
695 |
| UQ-4860(?)-4B |
48 x 60 |
99 |
76 |
7.0 |
4" NPT |
12 x 16 |
2" NPS |
4 x 6 |
840 |
| UQ-4872(?)-4B |
48 x 72 |
111 |
88 |
7.0 |
4" NPT |
12 x 16 |
2" NPS |
4 x 6 |
1159 |
| UQ-5460(?)-4B |
54 x 60 |
101 |
98 |
9.7 |
4" NPT |
12 x 16 |
2" NPS |
4 x 6 |
1000 |
| UQ-5472(?)-4B |
54 x 72 |
113 |
113 |
9.7 |
4" NPT |
12 x 16 |
2" NPS |
4 x 6 |
1430 |
| UQ-6060(?)-4B |
60 x 60 |
103 |
122 |
12.9 |
4" NPT |
12 x 16 |
2" NPS |
4 x 6 |
1385 |
| UQ-6072(?)-4B |
60 x 72 |
115 |
142 |
12.9 |
4" NPT |
12 x 16 |
2" NPS |
4 x 6 |
1505 |
| UQ-6660(?)-4B |
66 x 60 |
103 |
147 |
15.3 |
4" NPT |
12 x 16 |
2" NPS |
4 x 6 |
1865 |
| UQ-6672(?)-4B |
66 x 72 |
115 |
171 |
15.3 |
4" NPT |
12 x 16 |
2" NPS |
4 x 6 |
2040 |
| UQ-7260(?)-4B |
72 x 60 |
107 |
182 |
21.4 |
4" NPT |
12 x 16 |
2" NPS |
4 x 6 |
2130 |
| UQ-7272(?)-4B |
72 x 72 |
119 |
210 |
21.4 |
4" NPT |
12 x 16 |
2" NPS |
4 x 6 |
2320 |
|
(?) Substitute P for epoxy lined and primed; or C for epoxy lined and finishe coated in safety blue epoxy.
Example: UQ-2460P-2B is 24 x 60 lined and primed, non-coded, steel tank.
|
|
* Head Volume includes the straight flange of the head.
|
|
The above listed tanks are usually available in 7 to 10 days.
|
|
Custom tanks take 4 to 6 weeks (Download SWT New Steel Tanks Configuration Worksheet).
|
|
Flanges and other sized openings also available (Refer to SWT New Steel Tanks Configuration Worksheet).
|
|
Galvanized and stainless steel tanks also available.
|
|
36 to 72 inch diameter tanks have two lifting lugs on the top head. 48 to 72 inch diameter tanks also have one lifting lug on the bottom head.
|
| |
| |

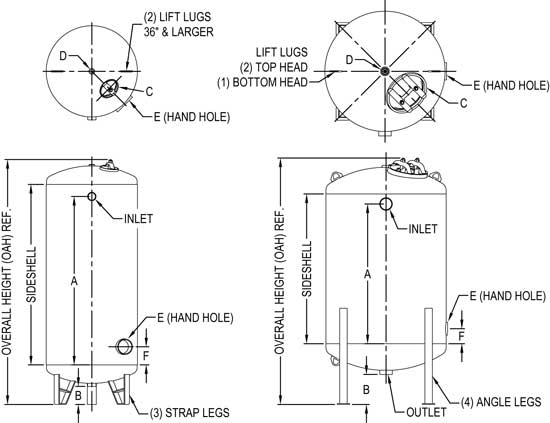

ASME Code Steel Tanks Specifications
(Download PDF to view ALL dimensions)
|
 |
| |
Part
Number |
Tank
Size
Inches |
Overall
Height
Inches |
Total
Volume
Cu. Ft. |
Head *
Volume
Cu. Ft. |
Inlet
and
Outlet |
Top
Access
(Dim C)
Inches |
Top
Spud
(Dim D)
Inches |
Bottom
Access
(Dim E)
Inches |
Approx.
Weight
LbS. |
| UQ-2054(?)-28-ASME |
20 x 54 |
75 |
11 |
0.8 |
2" NPT |
4 x 6 |
1" NPT |
4 x 6 |
140 |
| UQ-2060(?)-2B-ASME |
20 x 60 |
81 |
12 |
0.8 |
2" NPT |
4 x 6 |
1" NPT |
4 x 6 |
159 |
| UQ-2454(?)-2B-ASME |
24 x 54 |
77 |
16 |
1.3 |
2" NPT |
4 x 6 |
1" NPT |
4 x 6 |
195 |
| UQ-2460(?)-2B-ASME |
24 x 60 |
83 |
18 |
1.3 |
2" NPT |
4 x 6 |
1" NPT |
4 x 6 |
210 |
| UQ-3054(?)-2B-ASME |
30 x 54 |
81 |
26 |
2.6 |
2" NPT |
4 x 6 |
1" NPT |
4 x 6 |
325 |
| UQ-3060(?)-2B-ASME |
30 x 60 |
87 |
29 |
2.6 |
2" NPT |
4 x 6 |
1" NPT |
4 x 6 |
345 |
| UQ-3054(?)-3B-ASME |
30 x 54 |
84 |
26 |
2.6 |
3" NPT |
4 x 6 |
1" NPT |
6 x 8 |
340 |
| UQ-3060(?)-3B-ASME |
30 x 60 |
90 |
29 |
2.6 |
3" NPT |
4 x 6 |
1" NPT |
6 x 8 |
360 |
| UQ-3660(?)-3B-ASME |
36 x 60 |
95 |
43 |
4.6 |
3" NPT |
12 x 16 |
1" NPT |
6 x 8 |
525 |
| UQ-3672(?)-3B-ASME |
36 x 72 |
107 |
50 |
4.6 |
3" NPT |
12 x 16 |
1" NPT |
6 x 8 |
605 |
| UQ-4260(?)-3B-ASME |
42 x 60 |
97 |
60 |
7.2 |
3" NPT |
12 x 16 |
1" NPT |
6 x 8 |
700 |
| UQ-4272(?)-3B-ASME |
42 x 72 |
109 |
70 |
7.2 |
3" NPT |
12 x 16 |
1" NPT |
6 x 8 |
765 |
| UQ-4860(?)-4B-ASME |
48 x 60 |
104 |
80 |
10.2 |
4" NPT |
12 x 16 |
2" NPT |
4 x 6 |
1025 |
| UQ-4872(?)-4B-ASME |
48 x 72 |
116 |
93 |
10.2 |
4" NPT |
12 x 16 |
2" NPT |
4 x 6 |
1120 |
| UQ-5460(?)-4B-ASME |
54 x 60 |
109 |
107 |
14.2 |
4" NPT |
12 x 16 |
2" NPT |
4 x 6 |
1200 |
| UQ-5472(?)-4B-ASME |
54 x 72 |
121 |
122 |
14.2 |
4" NPT |
12 x 16 |
2" NPT |
4 x 6 |
1515 |
| UQ-6060(?)-4B-ASME |
60 x 60 |
111 |
134 |
19.2 |
4" NPT |
12 x 16 |
2" NPT |
4 x 6 |
1565 |
| UQ-6072(?)-4B-ASME |
60 x 72 |
123 |
154 |
19.2 |
4" NPT |
12 x 16 |
2" NPT |
4 x 6 |
1725 |
| UQ-6660(?)-4B-ASME |
66 x 60 |
115 |
167 |
25.1 |
4" NPT |
12 x 16 |
2" NPT |
4 x 6 |
2040 |
| UQ-6672(?)-4B-ASME |
66 x 72 |
127 |
190 |
25.1 |
4" NPT |
12 x 16 |
2" NPT |
4 x 6 |
2228 |
| UQ-7260(?)-4B-ASME |
72 x 60 |
117 |
203 |
32.2 |
4" NPT |
12 x 16 |
2" NPT |
4 x 6 |
2525 |
| UQ-7272(?)-4B-ASME |
72 x 72 |
129 |
230 |
32.2 |
4" NPT |
12 x 16 |
2" NPT |
4 x 6 |
2760 |
|
(?) Substitute P for epoxy lined and primed; or C for epoxy lined and finishe coated in safety blue epoxy.
Example: UQ-2460P-2B-ASME is 24 x 60 lined and primed, ASME coded, steel tank.
|
|
* Head Volume includes the straight flange of the head.
|
|
The above listed tanks are usually available in 7 to 10 days.
|
|
Custom tanks take 4 to 6 weeks (Download SWT New Steel Tanks Configuration Worksheet).
|
|
Flanges and other sized openings also available (Refer to SWT New Steel Tanks Configuration Worksheet).
|
|
Galvanized and stainless steel tanks also available.
|
|
36 to 72 inch diameter tanks have two lifting lugs on the top head. 48 to 72 inch diameter tanks also have one lifting lug on the bottom head.
|
| |
