Residential Carbon Filters
swtwater.com SWT Granular Activated Carbon Filters
For taste, odor, chlorine, color, & chemical reduction

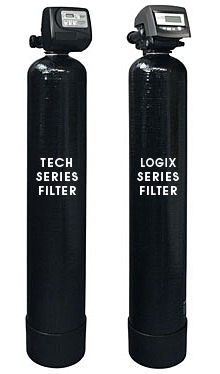

SWT Carbon Filters are available with Tech Series Valves or Logix Series Valves SWT’s Residential Point-of-Entry Granular Activated Carbon Filters are built utilizing SWT’s ProActive™ carbon — the best grade of non-viscous, coal based, virgin, steam activated carbon available. These filters are designed to be high quality, taste, odor, chlorine, color, and chemical reduction filters. Plus, these systems feature SWT’s Cyclonic Distributor System™ to provide full media bed contact, less channeling, and superior backwashing.
Excellent sediment filtration and low pressure drops
Acid washed, coconut shell, & catalytic carbons available
Fully programmable, energy efficient controller uses less than $5.00 of electricity per year
100% corrosion-free system features wound fiberglass tank with copolymer polypropylene lining
Choice of piston driven (Tech Series) or cam driven (Logix Series) valves
Duplex systems available
10 year warranty on tanks, 5 year warranty on valves


Tech Series Automatic Backwashing Carbon Filters
Part Number Tank Size
Inches
GAC Mesh
Size
Service Flow Rate † Backwash
40% Exp. @ 50ºF
GPM (LPM)
Standard
Connection Size
Standard
GPM (LPM)
VOC Reduction
GPM (LPM)
CFA075C 8 x 44 12 x 40 4-6 (15-23) < 2 (8) 3.5 (13.3) 1 inch Brass Sweat
CFA100C 9 x 48 12 x 40 5-8 (19-30) < 2 (8) 4.5 (17.0) 1 inch Brass Sweat
CFA150C 10 x 54 12 x 40 7-9 (26-34) < 3 (11) 5.0 (18.9) 1 inch Brass Sweat
CFA200C 12 x 52 12 x 40 10 (38) < 4 (15) 8.0 (30.3) 1 inch Brass Sweat
CFA250C 13 x 54 12 x 40 12.5 (47) < 5 (19) 9.0 (34.1) 1 inch Brass Sweat
CFA300C 13 x 65 12 x 40 15 (57) < 6 (23) 9.0 (34.1) 1 inch Brass Sweat
CFA350C 14 x 65 12 x 40 17.5 (66) < 6.5 (25) 10.0 (37.9) 1 inch Brass Sweat

Logix Series Automatic Backwashing Carbon Filters
Part Number Tank Size
Inches
GAC Mesh
Size
Service Flow Rate † Backwash
40% Exp. @ 50ºF
GPM (LPM)
Standard
Connection Size
Standard
GPM (LPM)
VOC Reduction
GPM (LPM)
CFA075L 8 x 44 12 x 40 4-6 (15-23) < 2 (8) 3.5 (13.3) 1 inch Copper Tube
CFA100L 9 x 48 12 x 40 5-8 (19-30) < 2 (8) 4.5 (17.0) 1 inch Copper Tube
CFA150L 10 x 54 12 x 40 7-9 (26-34) < 3 (11) 5.0 (18.9) 1 inch Copper Tube
CFA200L 12 x 52 12 x 40 10 (38) < 4 (15) 8.0 (30.3) 1 inch Copper Tube
CFA250L 13 x 54 12 x 40 12.5 (47) < 5 (19) 9.0 (34.1) 1 inch Copper Tube
CFA300L 13 x 65 12 x 40 15 (57) < 6 (23) 9.0 (34.1) 1 inch Copper Tube
CFA350L 14 x 65 12 x 40 17.5 (66) < 6.5 (25) 10.0 (37.9) 1 inch Copper Tube

Manual Carbon Filters
View photo
Part Number Tank Size
Inches
GAC Mesh
Size
Service Flow Rate † Backwash
40% Exp. @ 50ºF
GPM (LPM)
Standard
Connection Size
Standard
GPM (LPM)
VOC Reduction
GPM (LPM)
CFM075F 8 x 44 12 x 40 4-6 (15-23) < 2 (8) 3.5 (13.3) 1 inch Brass MNPT
CFM100F 9 x 48 12 x 40 5-8 (19-30) < 2 (8) 4.5 (17.0) 1 inch Brass MNPT
CFM150F 10 x 54 12 x 40 7-9 (26-34) < 3 (11) 5.0 (18.9) 1 inch Brass MNPT
CFM200F 12 x 52 12 x 40 10 (38) < 4 (15) 8.0 (30.3) 1 inch Brass MNPT
CFM250F 13 x 54 12 x 40 12.5 (47) < 5 (19) 9.0 (34.1) 1 inch Brass MNPT
CFM300F 13 x 65 12 x 40 15 (57) < 6 (23) 9.0 (34.1) 1 inch Brass MNPT
CFM350F 14 x 65 12 x 40 17.5 (66) < 6.5 (25) 10.0 (37.9) 1 inch Brass MNPT
† For superior filtration, reduce flow rates by 1/3 of the standard flow rate specification.

Duplex systems available.
International voltages available.
All systems have other piping connections available.
Non-backwash systems available.

Operating pressure: 20 to 125 psi (1.4 to 8.6 bar)
Operating temperature: 36 to 120°F (2 to 48.9°C)

All pressure vessels are wound fiberglass composite tanks with copolymer polypropylene liner and are NSF® listed.


Additional Equipment:

TANK JACKETS
RG-TJ0844EC Chrome Tank Jacket, 8 x 44 inch
RG-TJ0948EC Chrome Tank Jacket, 9 x 48 inch
RG-TJ1054EC Chrome Tank Jacket, 10 x 54 inch
RG-TJ1252EC Chrome Tank Jacket, 12 x 52 inch

WEATHER COVERS
LC-V3175WC-W White Weather Cover
LC-V3175WC-A Almond Weather Cover

TECH SERIES CONTROL VALVE ACCESSORIES Click to view all Tech Series accessories.
LC-V3070FF No Hard Water Bypass Valve, Female x Female
LC-V3070FM No Hard Water Bypass Valve, Female x Male
LC-V3022 1 inch Stack Puller
LC-V3022-15 1.25/1.5 inch Stack Puller
LC-V3193-02 Service Spanner Wrench

TECH SERIES AC ADAPTERS (TRANSFOMERS)
LC-V3186-05 AC Adapter (Transformer) 15V DC (North America Indoor) — STANDARD
LC-V3186-OD AC Adapter (Transformer) 110V-12V (North America Outdoor)
LC-V3186AUS-05 AC Adapter (Transformer) 15V DC (Australia Indoor)
LC-V3186AUS-OD AC Adapter (Transformer) 240V-12V (Australia Outdoor)
LC-V3186EU-05 AC Adapter (Transformer) 15V DC (Europe Indoor)
LC-V3186EU-OD AC Adapter (Transformer) 240V-12V (Europe Outdoor)
LC-V3186UK-05 AC Adapter (Transformer) 15V DC (UK Indoor)

LOGIX SERIES AC ADAPTERS (TRANSFOMERS)
UA-44149 AC Adapter (Transformer) 120V (North America Indoor) — STANDARD
UA-44193 AC Adapter (Transformer) 230V (North America Indoor)
UA-44156 AC Adapter (Transformer) 120V (North America Outdoor)
UA-1000812 AC Adapter (Transformer) 230V (Australia)
UA-1000810 AC Adapter (Transformer) 230V (Japan)
UA-1000814 AC Adapter (Transformer) 230V (Mainland Europe)
UA-1000813 AC Adapter (Transformer) 230V (UK)


Tech Series Substitutions by Request:

FITTINGS Click to view all Tech Series Fitting Kits listed below.
LC-V3007 1 inch PVC Male NPT Elbow Assembly
LC-V3007-01 3/4 x 1 inch PVC Solvent Elbow Assembly
LC-V3007-02LF 1 inch Brass Sweat Assembly (Lead Free) — STANDARD
LC-V3007-03LF 3/4 inch Brass Sweat Assembly (Lead Free)
LC-V3007-04 1 inch Plastic Male NPT Assembly
LC-V3007-05 1.25 inch Plastic Male NPT Assembly
LC-V3007-06 1 inch Plastic Male BSPT Assembly
LC-V3007-07 1.25 & 1.5 inch PVC Solvent Assembly
LC-V3007-08 1.25 inch Plastic Male BSPT Assembly
LC-V3007-09LF 1.25 & 1.5 inch Brass Sweat Assembly (Lead Free)
LC-V3007-12LF 3/4 inch SharkBite® Assembly (Lead Free)
LC-V3007-13LF 1 inch SharkBite® Assembly (Lead Free)
LC-V3007-14 3/4 inch Plastic Male BSPT Assembly
LC-V3007-15 3/4 inch John Guest® Elbow Assembly
LC-V3007-16 1 inch PVC Male BSPT Elbow Assembly
LC-V3007-17 1 inch John Guest® Straight Assembly
LC-V3007-18 3/4 inch Plastic Male NPT Assembly
LC-V3007-19 3/4 inch John Guest® Straight Assembly
LC-V3007-20 1 inch John Guest® Elbow Assembly
LC-V3191-01 Vertical 90 degree Adapter Assembly


Logix Series Substitutions by Request:

FITTINGS
Substitute 0.75 or 1 inch Copper Fittings
Substitute 0.75 or 1 inch PVC Socket Fittings
Substitute 0.75 or 1 inch PVC NPT Fittings
Substitute 0.75 or 1 inch Brass NPT Fittings

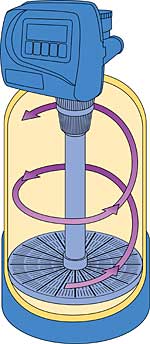

SWT Cyclonic Distributor System
SWT Systems Include the REVOLUTIONARY
CYCLONIC DISTRIBUTOR SYSTEM™
Up to 30% less backwash flow rate is required...conserving water for the customer
Distributor plate is designed for more than 6,500 lbs load capacity
Reduces system pressure loss while increasing flow and efficiency through the bed
Bottom plate distributor (shown left) available for 7, 8, 9, 10, 12, 13, 14, and 16 inch diameter tanks
Mid plate distributors (up to 4 per tank) available for 10 inch and 13 inch diameter tanks
This environmentally friendly design offers the most efficient service and backwashining characteristics available — reducing the amount of water to drain in backwash, while increasing the overall filtration capacity of a system. Click here for more information.
