Storage Tanks
swtwater.com Brine & Chemical Storage Tanks
Blow Molded
SWT's Blow Molded Brine and Chemical Storage Tanks
Blow Molded Brine and Storage Tanks are available in 24 and 30 inch diameters. The 30 inch diameter tank is the largest blow molded brine tank for commercial and industrial applications. These round tanks are molded of high density polyethylene for exceptional stress and crack resistant properties. These tanks feature heavy wall thickness for increased durability. All tanks and covers are black.

FEATURES:
Made of one piece, rigid, high impact, non-toxic polyethylene
High chemical resistance
Ultraviolet inhibitors
Ideal for commercial and industrial applications
Available in 24 and 30 inch diameters

BLOW MOLDED BRINE & CHEMICAL STORAGE TANKS
Part Number Description Diameter
Inch (cm)
Height
Inch (cm)
Capacity
Gal. (liter)
Salt Capacity
Lbs (kg)
Weight
Lb. (kg)
LC-BT2441 24 x 41, Cylindrical 24 (61) 41 (104) 80 (303) 700 (318) 24 (11)
LC-BT2450 24 x 50, Cylindrical 24 (61) 50 (127) 100 (379) 900 (408) 27 (12)
LC-BT3050 30 x 50, Cylindrical 30 (76) 50 (127) 150 (568) 1400 (635) 49 (22)

ACCESSORIES:

PART NUMBER DESCRIPTION
LC-H1080 Plastic Grid Plate,
24 inch diameter
(See photo right.)
LC-H1032 Plastic Grid Plate,
30 inch diameter
(See photo far right.)
24 inch Grid Plate (P/N LC-H1080) 30 inch Grid Plate (P/N LC-H1032

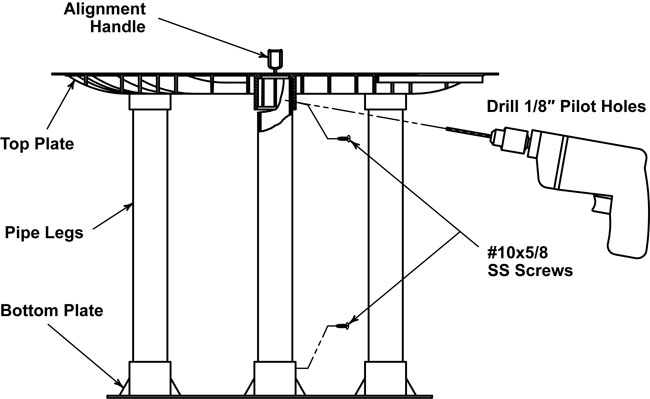

  Click to view grid plate assembly drawing.
