Specialty Resin
swtwater.com ProBlend™ Low TOC Throw
High Capacity Mixed-Bed Resin

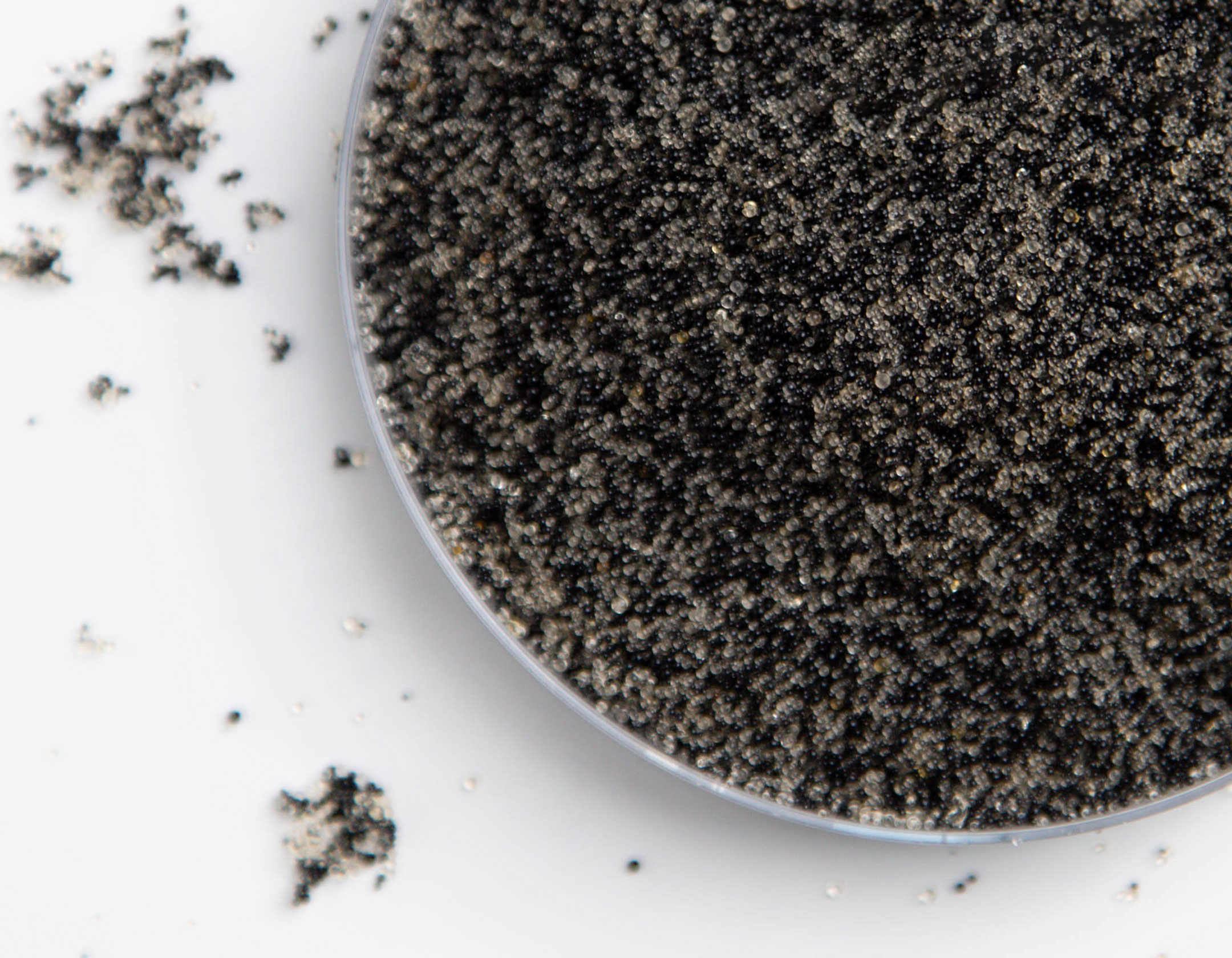

ProBlend™ LT-HC (P/N ER30005) is a high grade mixed-bed made to attain very low leachable TOC levels. The product is fully tested to ensure its ability to achieve 18 megohm resistivity. Each batch is also tested to ensure its ability to rinse to below 25 ppb of leachable TOC in less than 25 bed volumes from start up and to below 10 ppb in less than 50 bed volumes.


APPLICATIONS:
Portable Exchange D.I.
Condensate Polishing
Laboratory and Pharmaceutical
Cartridge demineralizers
Hemodialysis
Boiler Feedwater
Chemical and Photographic Solutions


ProBlend-HC Pressure Drop Graph

PRESSURE DROP — The graph above shows the expected pressure loss per foot of bed depth as a function of flow rate at various temperatures.


ProBlend-HC Backwash Graph

BACKWASH — The backwash step is used to separate the components prior to regeneration and to remove particles. The separation is optimized at a bed expansion of 50 to 75 percent.


Limitations:
Extended exposure to strong oxidizers (such as chlorine, hydrogen peroxide, and concentrated nitric acid) degrade the structural backbone of the resin and should be avoided.


CAUTION: DO NOT MIX ION EXCHANGE RESINS WITH STRONG OXIDIZING AGENTS. Nitric acid and other strong oxidizing agents can cause explosive reactions when mixed with organic materials such as ion exchange resins.


ProBlend™ is a trademark of Safe Water Technologies, Inc.

    Features:
  Conforms to paragraph 21 CFR173.25 of the Food Additives Regulations of the FDA
  Designed to provide ultra-high purity water
  Highest operating capacity
  Low effluent TOC values
  Superior thermal and physical stability
  Best choice for single use applications, cartridges, & severe operating conditions

PHYSICAL PROPERTIES
Part Number ER30005
Functional Structure
  Cation (Hydrogen Form)
  Anion (Hydroxyl Form)

RSO3-H+ (Gel)
R4N+OH- (Type 1 Gel)
Physical Form Spherical beads
Screen Size Distribution
  + 16 mesh (US Std.)
  – 45 mesh (US Std.)

2% maximum
2% maximum
Moisture Content
(as shipped)
60% maximum
Volume Ratio (as shipped)
  Cation
  Anion

40%
60%
Total Capacity
  Cation (Na+ form)
  Anion (Cl- form)

1.95 meq/mL min.
1.40 meq/mL min.
Column Operating Capacity 0.60 meq/mL (13 Kgrs/cu.ft.) minimum to electrolyte breakthru during initial cycle.
Approx. Ship. Wt. 43 lb/cu.ft.
Standard Packaging 5 or 7 cu.ft. plastic lined fiber drums

SUGGESTED OPERATING CONDITIONS
Maximum Temperature
  Non-regenerable*
  Regenerable

175°F (80°C)
140°F (60°C)
Operating Flow Rate (Typical) 2 to 10 gpm/cu.ft.
pH Range 0 to 14
Backwash Rate See graph left
Pressure Drop See graph left
Metals Content (Typical Dry Wt)
  Iron (Fe)
  Copper (Cu)
  Lead (Pb)

100 ppm maximum
50 ppm maximum
50 ppm maximum
Percent Conversions to Ionic Form
  Cation H
  Anion OH
  Cl + SO4
  CO3

99% minimum
95% minimum**
5% maximum
** (see note below)
* 6 month typical resin life at 175ºF (80ºC).
**
Hydroxides measured in anion component prior to mixing. The CO3 level measured immediately after production is held to the same specifications as the SO4. Actual CO3 levels may change during storage and shipment due to adsorption of CO2 from the atmosphere. We recommend keeping all containers sealed closed until use. For longer storage times, gas barrier packaging (mylar) is suggested. Contact your SWT representative for more information.

ADDITIONAL INFORMATION:
SWT Ion Exchange Resin Guide
SWT ProBlend High Capacity Resins Comparison Table
