Cartridge Tank System
swtwater.com Cartridge Tank™

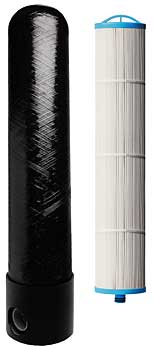

SWT Cartridge Tank and Cartridge
View tank cutaway.
View tank and cartridge size comparisons.
View installation
Top Cap Cover available for SWT Cartridge Tank
Top Cap Cover
Option available
(P/N CTS-COVER)
Say goodbye to small and inefficient housings.
Get rid of expensive stainless steel housings.

The Cartridge Tank™ offers extended life and service,
and a more cost effective and efficient filtration solution.

The Cartridge Tank filtration system features an 8 x 40 composite tank with easy-to-access top and bottom openings for use with various filtration connections and solutions. Lightweight and cost effective with multiple configuration options, this is the filtration solution of the future!

Features
Extended service life, contaminant removal, and dirt holding capacity.
Lightweight and cost-effective housing with high chemical compatibility.
100% non-metallic, NSF 61 and 42 listed device.
2.5"-8 NPSM PVC bottom assembly with 1.25 inch socket in/out (1.660") or 4.5" buttress PVC bottom assembly with 2 inch socket in/out (2.375") for multiple pipe requirement connections.
All glue joints and connections are contained underneath and inside the vessel base for clean connections and visibly attractive systems for homeowners, businesses, and consumers.
Patented, no tools necessary, snap ring design makes it easy to access the high capacity 6 x 30 cartridge. Full radial seal caps make replacement simple.
Pressure release top opening with the plumbing connections at the bottom allows access and service to the filter without disrupting plumbing.
125 psi @ 100°F maximum operating pressure.

Applications
Whole house POE requirements, whether for city or well water applications.
Extreme loading conditions, RO systems, and any other pretreatment applications where high service flow and low pressure drop requirements are required or desirable.
For customers that are tired of changing small 2.5 or 4 inch filters on a weekly or monthly basis.
Replacement solution for expensive stainless steel housings... 100% plastic design.
Ideal for most problem water issues where particulate contaminated water is concerned—with lower shear velocity these filters can load properly with particulates, unlike conventional filtration.

  Install Cartridge Tank filters in parallel to achieve higher flow rates or in a series for step filtration, allowing various micron ratings in each Cartridge Tank. This makes Cartridge Tank filters an attractive option for those applications that require versatility.

Easy Access...
Push red button
until pressure
is completely
released.
Push black
cap down.
Remove clip
ring by pulling
handle inward
and upward.
Remove cap. Replace cartridge.


CARTRIDGE TANKS — WITHOUT CARTRIDGE
Part Number Description Fits Cartridge series Inlet/Outlet
CTS-125 Cartridge Tank for use with CTS1 cartridges (see below) Yellow, Orange, Green, Blue, White 1.25 inch Socket
CTS-200 Cartridge Tank for use with CTS2 cartridges (see below) Red, Purple 2 inch Socket
Top Cap Cover (P/N CTS-COVER) available to prevent water collection in top cap for outdoor installations.


CARTRIDGE TANK CARTRIDGES
Click cartridge photo to view larger image.
Yellow Series — for use with CTS-125 Cartridge Tanks
Yellow Series Cartridge These cartridges are combination filters with a polypropylene string outer layer and a meltblown polypropylene core. The dual media construction provides a cost effective, extended service life product capable of capturing a broad range of particulates, with high service flow rates greater than 30 gpm with less than 15 Delta P. The outer pre-filter is manufactured using 100% polypropylene yarn wound in a precise pattern to capture larger particles (fine sediment, sand, silt, rust, scale), thus extending the service life of the inner filter. The meltblown inner filter is manufactured using thermally bonded polypropylene fibers offering minimal pressure drop and consistent downstream flow without fiber migration. These cartridges provide 2x the surface area and 3x the media content of a standard 4.5 x 20 wound cartridge.
Typical Applications: Potable water, food/beverage, RO pre-filtration, fine chemicals, electronics, metal finishing, plating solutions, oxidizing agents, corrosive fluids, gases, concentrated acids and alkali.
Certifications: All components and materials are made with FDA approved materials, and manufactured from NSF components.
Part Number Usage Material Flow Rate
GPM
Micron
Rating
Design Type of
Filtration
@ 3
psid
@ 8
psid
CTS1-SW-PP-20-5 Sediment Polypropylene 20 36 20/5 String Wound Depth
CTS1-SW-PP-50-20 Sediment Polypropylene 25 40 50/20 String Wound Depth


Orange Series — for use with CTS-125 Cartridge Tanks
VIEW MORE INFORMATION
Orange Series Cartridge These cartridges are constructed of dual gradient, double pleated layers for extended life and use while achieving high flow and low pressure drop. They will outperform competitive filtration solutions in all turbidity applications including silt, rust, and other particle filtration. They also provide lower shear water velocity as the raw water passes through the filter, allowing for more contact time and interaction with the extensive surface area of the cartridge. These cartridges provide 6.5x the total surface area of a standard 4.5 x 20 pleated cartridge and nearly 14.5x that of a standard 2.5 x 20 cartridge. This results in higher water quality and longer life of the filtration system.
Typical Applications: Food service, RO pre-filtration, make-up water, rental fleets, cooling towers, chill water loops, metal finishing, process water (turbidity, particulate, colloidal suspensions).
Certifications: All components and materials are made with FDA approved materials, are manufactured from NSF 61 Certified coconut shell carbon, and are California Prop 65 compliant.
Part Number Usage Material Flow Rate
GPM
Micron
Rating
Design Type of
Filtration
@ 3
psid
@ 8
psid
CTS1-DP-PE-10-5 Sediment Polyester 50 150 10/5 Double Pleated Dual Gradient
CTS1-DP-PE-20-10 Sediment Polyester 50 150 20/10 Double Pleated Dual Gradient
CTS1-DP-PE-50-20 Sediment Polyester 50 150 50/20 Double Pleated Dual Gradient


Green Series — for use with CTS-125 Cartridge Tanks
VIEW MORE INFORMATION
Green Series Cartridge These cartridges are constructed of electropositively charged dual gradient, double pleated layers for extended life and use. They feature a thermally bonded blend of micro-glass fibers and cellulose, infused with nanoalumina fibers in a non-woven matrix that creates an electropositively charged depth filter media. When assembled into a pleated cartridge, it offers a unique combination of efficiency, capacity, flow rate, and low pressure drop at levels unmatched in today's filtration marketplace. In addition, all filter cartridges feature the use of Agion® antimicrobial technology that provides built-in protection by working 24/7 resisting the growth of microbes. The filters will remove contaminants down to 0.2 micron and will outperform competitive filtration solutions in all turbidity applications including insoluble scale, Fe3, bacterial iron slime, colloidal solids, silt, rust, and other particle filtration, resulting in higher water quality and longer life of the filtration system.
Typical Applications: Primary filtration in lieu of microporous membranes, make up water (particulate, microbial control), polishing filters (carbon fines, emulsified oil removal), RO pre-filtration (SDI reduction), process water (turbidity, particulate, colloidal suspensions), waste water (biologicals, proteins, dyes), cooling towers, and chill water loops (iron removal).
Certifications: All components and materials are made with FDA approved materials.
Part Number Usage Material Flow Rate
GPM
Micron
Rating
Design Type of
Filtration
@ 3
psid
@ 8
psid
CTS1-DP-A Sub-micron, Bacteria, Cyst Micro-Glass Fiber
with Cellulose /
NanoAl with Biostat
30 60 20/0.2 @
99.99%
Efficiency
Double Pleated
Impregnated
Dual Gradient
CTS1-DP-ACB Sub-micron, Bacteria, Cyst, Chlorine Micro-Glass Fiber
with Cellulose /
NanoAl with Biostat /
Carbon Block
35 60 20/0.2 @
99.99%
Efficiency
Double Pleated
Impregnated & Carbon Block Core
Dual Gradient & Carbon Block
Green Series cartridges use Agion® antimicrobial technology.


Blue Series — for use with CTS-125 Cartridge Tanks
VIEW MORE INFORMATION
Blue Series Cartridge These carbon block filters are made using high performance coconut shell carbon coupled with a unique binder system for superior adsorption capacity and kinetic dynamics. The chloramine block cartridges use a proprietary media with an enormous number of catalytically active nitrogen groups for highly efficient reduction of chloramines. This enhanced catalytic functionality has FIVE times more capacity for chloramines reduction than standard carbon blocks. These cartridges deliver exceptionally low pressure drop, high dirt holding capacity, and excellent contaminant reductions.
Typical Applications: They are ideal for a wide range of residential, food service, commercial, and industrial applications, and are effective at reducing unwanted bad taste and odor, along with chlorine taste and odor from potable drinking water. The filters are ideal as polishing or pre-filters in applications requiring fine filtration and high capacity.
Certifications: All components and materials are made with FDA approved materials, are manufactured from NSF 61 Certified coconut shell carbon, and are California Prop 65 compliant.
Part Number Usage Material Flow Rate
GPM
Micron
Rating
Design Type of
Filtration
@ 3
psid
@ 8
psid
CTS1-CCB-3 Chlorine, Taste, Odor [1] Coconut Shell Carbon 20 36 3 Carbon Block Adsorption
CTS1-CCB-20 Chlorine, Taste, Odor [2] Coconut Shell Carbon 25 43 20 Carbon Block Adsorption
CTS1-ACB-3 Chloramine, Chlorine, Taste, Odor [3] Catalytic
Coconut Shell Carbon
20 36 3 Chloramine
Carbon Block
Adsorption
[1] 250,000 gallons @ 15 gpm with 90% reduction using 2 ppm free chlorine.
[2] 150,000 gallons @ 7 gpm with 90% reduction using 2 ppm free chlorine.
[3] 50,000 gallons @ 7 gpm with 85% reduction using 3 ppm chloramine.


White Series — for use with CTS-125 Cartridge Tanks
White Series Cartridge These unique, high capacity cartridges are 0.5 cu.ft. empty poltpropylene containers to be filled with granular filtration media for multiple filtration options and solutions. The design incorporates SWT's Cyclonic Distributor System (CDS) for uniform distribution and utilization of the media bed along with maximum efficiencies and service flow rates. They are available in a CDS mid-plate configuration that splits the cartridge chambers equally, 0.25 cu.ft. per chamber, for separation and use of different medias. A removable top cap has a locking feature that can be used for limiting end-user access to the internal medias, and special "hanging" rings on the bottom allow for easy media change-outs in applications such as service DI exchange.
Typical Applications: This filter series is ideal for a wide range of residential, food service, commercial, and industrial applications, and can be used for multiple applications from service DI, POE for city or well-water installations, rental programs, exchange systems, high-purity pre- or post-filtration applications, etc.
Part Number Usage Material Flow Rate
GPM
Micron
Rating
Design Type of
Filtration
@ 3
psid
@ 8
psid
CTS1-RC-E1 Media Dependent Polypropylene Container 0.5 cu.ft. Capacity Upflow or Downflow
CTS1-RC-E2 Media Dependent Polypropylene Container (2) 0.25 cu.ft. Chambers Upflow or Downflow


Red Series — for use with CTS-200 Cartridge Tanks
VIEW MORE INFORMATION
Red Series Cartridge The Red Series are pleated polypropylene cartridges, with multiple levels of filtration flexibility. The impregnated (PAC) cartridge dramatically improves the quality of water by reducing chlorine, bad tastes, foul odors, and sediment. The pleated cartridges are 100% cellulose free media and cleanable 5 micron and up. They are tough, durable, and designed for a variety of residential and commercial uses.
Typical Applications: Whole house filtration, commercial filtration, industrial filtration, pre-filtration for reverse osmosis equipment, community water systems, sea water applications due to their non-corrosive construction, replacement for bag filters with more filter area, and water for livestock and poultry.
Certifications: All components and materials are manufactured from NSF 61 and FDA Certified materials.
Part Number Usage Material Flow Rate
GPM
Micron
Rating
Design Type of
Filtration
@ 3
psid
@ 8
psid
CTS2-SP-PP-1A Sediment Polypropylene 20 53 1 Micron
Absolute
Pleated Surface
CTS2-SP-PP-1 Sediment Polypropylene 29 78 1 Pleated Surface
CTS2-SP-PP-5 Sediment Polypropylene 37 100 5 Pleated Surface
CTS2-SP-PE-20 Sediment Polyethylene 50 133 20 Pleated Surface
CTS2-SP-PE-50 Sediment Polyethylene 62 150 50 Pleated Surface
CTS2-SP-PP-150 Sediment Polypropylene 105 150 150 Pleated Surface
CTS2-SP-PPC-5 Sediment, Chlorine [4] Polypropylene /
Carbon
15 NA 5 Pleated/
Impregnated
Surface
[4] 140,000 gallons @ 15 gpm for 90% chlorine removal.


Purple Series — for use with CTS-200 Cartridge Tanks
Purple Series Cartridge These meltblown polypropylene depth cartridges are ideal for reduction of soft particulate. They are tough, durable, and designed for high service flow rates. The filters will outperform competitive filtration solutions in all turbidity applications including silt, rust, and other soft particle filtration.
Typical Applications: Whole house filtration, commercial filtration, industrial filtration, pre-filtration for reverse osmosis equipment, community water systems, sea water applications due to their non-corrosive construction, replacement for bag filters with more filter area, and water for livestock and poultry.
Certifications: All components and materials are manufactured from NSF 61 and FDA Certified materials.
Part Number Usage Material Flow Rate
GPM
Micron
Rating
Design Type of
Filtration
@ 3
psid
@ 8
psid
CTS2-MB-PP-5 Sediment Polypropylene 62 100 5 Melt Blown Depth
CTS2-MB-PP-20 Sediment Polypropylene 70 112 20 Melt Blown Depth
