Cartridge Tank System
swtwater.com Double Pleated Cartridges
Fits CTS-125 Cartridge Tank™
SWT Cartridge Tank Cartridge

DUAL GRADIENT, DOUBLE PLEATED, SEDIMENT FILTER CARTRIDGES
These cartridges are constructed of dual gradient, double pleated layers for extended life and use while achieving high flow and low pressure drop. They will outperform competitive filtration solutions in all turbidity applications including silt, rust, and other particle filtration. They also provide lower shear water velocity as the raw water passes through the filter, allowing for more contact time and interaction with the extensive surface area of the cartridge (100 sq.ft. approx). These cartridges provide 6.5 times the total surface area of a standard 4.5 x 20 pleated cartridge and nearly 14.5 times that of a standard 2.5 x 20 cartridge. This results in higher water quality and longer life of the filtration system.

Features
Dual gradient, double pleated filter
Double EPDM o-ring seals
Filter belly bands
Durable polyester filter and polypropylene cap construction
Unique handle designed top cap for lightweight and easy removal
Each cartridge comes with a plastic bag for proper storage and disposal
Fits CTS-125 Cartridge Tank™

Benefits
Extended service life, contaminant removal, and dirt holding capacity
Low pressure drop, high flow rate
Ensures no bypass of contaminants and high chemical compatibility
Prevent collapsing of filters under high flow or contaminant load applications
Bacteria and chemical resistant

Applications
Ideal for residential, food service, rental fleets, commercial, and industrial applications
Make-up water, RO pre-filtration, cooling towers, chill water loops, metal finishing
Process water (turbidity, particulate, colloidal suspensions)


DUAL GRADIENT, DOUBLE PLEATED, SEDIMENT FILTER CARTRIDGES
FOR USE WITH CTS-125 CARTRIDGE TANKS
Part Number Usage Series Material Flow Rate
GPM
Micron
Rating
@ 3
psid
Max
CTS1-DP-PE-10-5 Sediment Orange Polyester 50 150 10/5
CTS1-DP-PE-20-10 Sediment Orange Polyester 50 150 20/10
CTS1-DP-PE-50-20 Sediment Orange Polyester 50 150 50/20

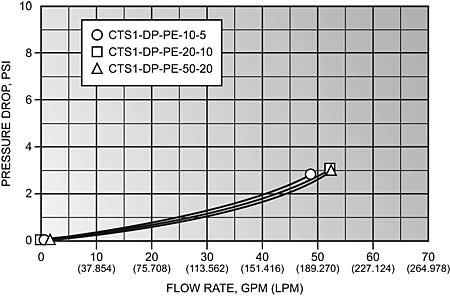

  FILTER PERFORMANCE
  CT-OR Performance Curves


NOTES:
Performance claims are based on independent lab results and manufacturer’s internal test data. Actual performance is dependent on influent water quality, flow rate, system design, and application. Results may vary.
Micron ratings are based on 85% or greater removal of a given particle size.
Flush new cartridges until water runs clear prior to use.
Do not use with water that is microbiologically unsafe or of unknown quality without adequate disinfection before or after the system.



Safe Water Technologies, Inc.
996 Bluff City Boulevard
Elgin, IL 60120 USA


Telephone: +1.847.888.6900
Facsimile: +1.847.888.6924
E-mail: info@swtwater.com
http://www.swtwater.com

Last Updated: November 12, 2015
