Cartridge Tank System
swtwater.com Pleated Cartridges
Fits CTS-200 Cartridge Tank™
SWT Cartridge Tank Cartridge

PLEATED SEDIMENT FILTER CARTRIDGES
These pleated polypropylene or polyethylene cartridges are available with multiple levels of filtration flexibility. The impregnated (PAC) cartridge dramatically improves the quality of water by reducing chlorine, bad tastes, foul odors, and sediment. The cartridges are 100% cellulose free media and cleanable 5 micron and up. They are tough, durable, and designed for a variety of residential and commercial uses. Install filters in parallel to achieve higher flow rates or in a series for step filtration, allowing various micron ratings in each Cartridge Tank for those applications that require versatility.

Features
Pleated polypropylene or polyethylene media
Double EPDM o-ring seals
Filter belly bands
Unique handle designed top cap for lightweight and easy removal
Each cartridge comes with a plastic bag for proper storage and disposal
Fits CTS-200 Cartridge Tank™

Benefits
The PAC cartridge's maximum service flow rate is 15 gpm with a removal capacity of 140,000 gallons, with a 90% chlorine reduction. This dramatically improves the quality of water by reducing chlorine, bad tastes, foul odors, and sediment.
The pleated cartridges, 5 micron and up, are for service flow rates up to 150 gpm, with low pressure drop of less than 15 psid, are 100% cellulose free media and cleanable.

Applications
Whole house filtration
Commercial filtration
Industrial filtration
Pre-filtration for reverse osmosis equipment
Community water systems
Sea water applications due to their non-corrosive construction
Replacement for bag filters with more filter area
A convenient alternative to multiple cartridge filters
Water for livestock and poultry


PLEATED SEDIMENT FILTER CARTRIDGES
FOR USE WITH CTS-200 CARTRIDGE TANKS
Part Number Usage Series Material Flow Rate
GPM
Micron
Rating
Design Type of
Filtration
@ 3
psid
@ 8
psid
Max.
CTS2-SP-PP-1A Sediment Red Polypropylene 20 53 50 1 Micron
Absolute
Pleated Surface
CTS2-SP-PP-1 Sediment Red Polypropylene 29 78 150 1 Pleated Surface
CTS2-SP-PP-5 Sediment Red Polypropylene 37 100 150 5 Pleated Surface
CTS2-SP-PE-20 Sediment Red Polyethylene 50 133 150 20 Pleated Surface
CTS2-SP-PE-50 Sediment Red Polyethylene 62 150 150 50 Pleated Surface
CTS2-SP-PP-150 Sediment Red Polypropylene
Mesh
105 150 150 150 Pleated Surface
CTS2-SP-PPC-5 Sediment,
Chlorine
Red Polypropylene/
Carbon [1]
15 NA 15 5 Pleated/
Impregnated
Surface
1. 140,000 gallons @ 15 gpm with 90% reduction of chlorine
NOTE: Maximum allowed pressure drop is 30 psid for all cartridges.

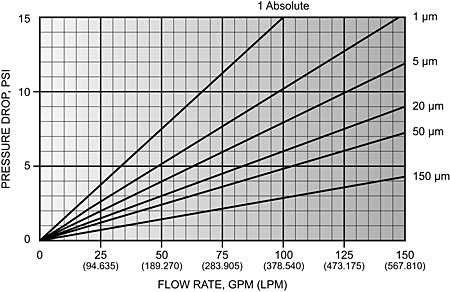

  FILTER PERFORMANCE
  CT-RE Performance Curves


NOTES:
Performance claims are based on independent lab results and manufacturer’s internal test data. Actual performance is dependent on influent water quality, flow rate, system design, and application. Results may vary.
Micron ratings are based on 85% or greater removal of a given particle size.
Flush new cartridges until water runs clear prior to use.
Do not use with water that is microbiologically unsafe or of unknown quality without adequate disinfection before or after the system.



Safe Water Technologies, Inc.
996 Bluff City Boulevard
Elgin, IL 60120 USA


Telephone: +1.847.888.6900
Facsimile: +1.847.888.6924
E-mail: info@swtwater.com
http://www.swtwater.com

Last Updated: November 12, 2015
