SWT's MetalEase-AS5 Pressure Drop Graph
(P/N METALEASE AS5)
Product Information
PRESSURE DROP —

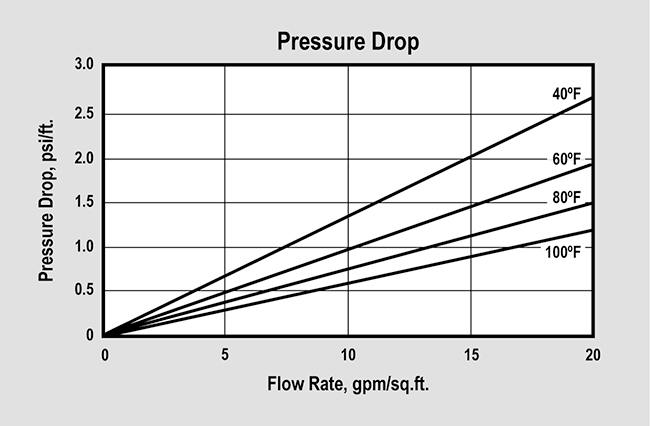

The graph above shows the expected pressure loss per foot of bed depth as a function of flow rate at various temperatures.
