SWT's Fully-Ported 4" Distribution System Kit for 63" diameter composite tanks with 6" SNA flanges
63" Diameter Tanks

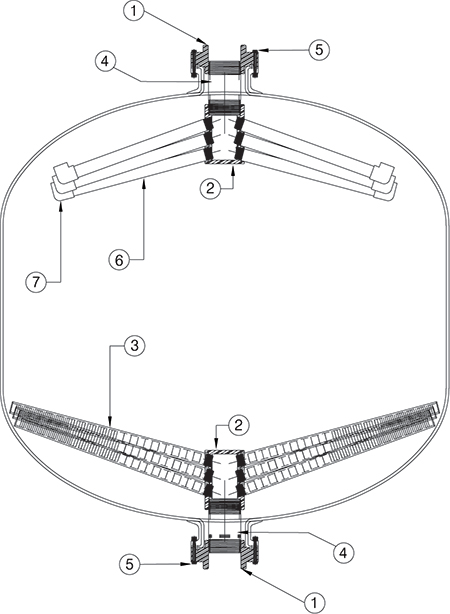

SM-DSF634-Custom Schematic
SM-DSF634-CUSTOM
(picture of upper distribution system)
(picture of lower distribution system)

PT PART LIST QTY DESCRIPTION
1 2

Flange Adapter 6" SNA x 4" Socket PVC with EPDM Gasket
4" FNPT Inside Tank, 4" Socket Outside Tank
with 12 Bolt Holes, 9-3/8" OD x 4" Height

2
2 Hub 4" FNPT
21 each: 1" FNPT Type A Lateral Ports
3 Rows of 7 Lateral Ports at 15°, 18°, and 20° (Faced)
5-1/2" OD x 7-1/4" Height
3 21 Lateral S80 1" MPT x 28" OAL 0.010 Slot CUSTOM
1.315" OD x 28" OAL
4 2 Nipple 4" MPT x 7"
0.010" Slots
5 Rows x 2 Slots on Each End
4-1/2" x 7" OAL
5 2 Hardware Kit SS304 for 6" SNA Flange Adapter
24 each: Washers; 12 each: Lock Washers;
12 each: Nuts; 12 each: Bolts
6 21 Nipple 1" NPT x 12" Machine Threaded Both Ends (TBE)
7 21 Elbow 90° 1" FNPT x Socket
2.4" x 2.25" x 1.625"
