SWT PTFE Membrane Cartridges
SWT’s PTFE Membrane Cartridges provide the ultimate flow rate performance for liquid or air sterilization.
SWT’s PTFE Pharmaceutical Liquid Bacterial Retentive (LBR) Cartridges are designed for those who require sterile pharmaceutical fluids and are validated to provide sterility through the retention of Brevundimonas diminuta per HIMA guidelines. Along with their sterilizing-grade performance, these cartridges exhibit high air and fluid flow rates due to the 9.3 ft2 of expanded PTFE membrane.

SWT’s PTFE cartridges are manufactured in a certified Class 10,000 cleanroom where they are flushed with nonpyrogenic deionized water and 100% integrity tested as well as serialized to provide complete product traceability.


    ADVANTAGES:
  • Fully validated for sterilizing-grade performance
  • High flow rates, long on-stream life
  • Broad chemical compatibility
  • USP Class VI-121ºC certified
  • Low differential pressures
  • Thermally bonded
  • Integrity tested and serialized

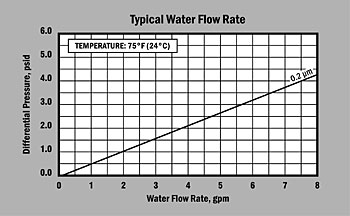

SWT PTFE Absolute Cartridge Flow Graph


Applications:
Solvent sterilization; extraction / crystallization solvents; hot WFI filtration; aseptic packaging air / sterile air supply; fermenter / tank vents


Specifications
Typical Liquid Flow Rate:
1.9 gpm/psid (0.10 lpm/mbar)
Materials of Construction:
— Depth Media: PTFE
— Support Layers: Polypropylene
— Housing: Polypropylene
Effective Filtration Area:
9.3 sq.ft. (0.86 sq.m)
Max. Differential Pressure:
— Forward: 80 psid (5.5 bar) @ 75ºF (24ºC)
— Reverse: 50 psid (3.4 bar) @ 75ºF (24ºC)
Bacteria Retention:
Bacteria retention greater than 107sq.cm. per
HIMA methodology for 0.2 micron sterilizing grade
filters using Brevundimonas diminuta
Biosafety:
All components meet USP-XXIII Class VI-121ºC criteria
Sealing Methods:
All components are thermally bonded to assure integrity and to reduce extractables
Steam Sterilizable & Sanitizable:
Cartridges may be steamed or autoclaved for more than 20 one-hour cycles @ 275ºF (145ºC). Cartridges may also be chemically sanitized in place using common sanitizing agents.
Integrity Test Values:
(Tested in 60% isopropanol / 40% deionized water)
— Micron Pore Size: 0.2 µm
— Bubble Point: ≥ 21 psig (1.45 bar)
— Diffusional Flow: ≤ 25 cc/min
— Test Pressure: 17 psig (1.17 bar)


Ordering Information
0.1 Micron PTFE Absolute Filter Cartridges
0.2 Micron PTFE Absolute Filter Cartridges
0.45 Micron PTFE Absolute Filter Cartridges
