swtwater.com XP Series PES Membrane Cartridges
SWT's XP Series Pleated PES Membrane Cartridge
Made in USA
Economy Pleated Polyethersulfone (PES) Membrane Cartridges
SWT’s XP Series filter cartridges are economical pleated polyethersulfone (PES) membrane filters for general absolute filtration applications. The polyethersulfone construction ensures excellent chemical compatibility, high loading capacity, and high flow rates.


Advantages
All materials meet FDA requirements for food contact (21CFR)
High flow rates, long on-stream life
Broad chemical compatibility
USP Class VI-121ºC certified
Low differential pressures
Thermally bonded
Low extractables

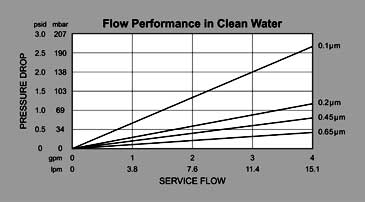

SWT Series XP Absolute Cartridge Flow Graph


Applications
Solvent filtration; Liquid clarification; Recirculating liquids; General water filtration; Reagent grade chemicals; Beverage/wine clarification; RO/DI pre-filtration; Waste water


Specifications
Effective Filtration Area:
8.1 sq.ft. (0.75 sq.m)
Max. Operating Temperature (water):
180ºF (82ºC) @ 10 psid (0.69 bar)
Maximum Differential Pressure:
Forward: 60 psid (4.14 bar)
Reverse: 30 psid (2.07 bar)
Diameter:
Outside: 2.75 inch (70 mm)
Inside: 1.25 inch (31 mm)
Materials of Construction:
Filter Media: Polyethersulfone membrane
Media Support: Polypropylene microfiber
Components: Polypropylene
Sealing: Thermal bonding


Ordering Information
Part Number Matrix:
SO-XP-PES (MR) (A1) (A2) (NL) (SM)
(MR) Micron Rating
01 = 0.1 micron
02 = 0.2 micron
45 = 0.45 micron
65 = 0.65 micron
(A1) End Adapter #1 *
A = Flat end gasket
B = 120 internal o-ring
C = 213 internal o-ring
E = 222 o-ring
F = 226 o-ring
(A2) End Adapter #2 *
A = Flat end gasket
B = 120 internal o-ring
C = 213 internal o-ring
G = Closed end cap
H = Fin adapter
(NL) Nominal Length
10 = 10 inch (25.4 cm)
20 = 20 inch (50.8 cm)
30 = 30 inch (76.2 cm)
40 = 40 inch (101.6 cm)
(SM) Seal Material
B = Buna-N
E = EPDM
S = Silicone
V = Viton

Example:
SO-XP-PES02AA30S is a 0.2 micron absolute rated filter cartridge, 30 inch nominal length, double open end (DOE) configuration with silicone seals.

* View End Adapter Equivalent Codes.


Shipping Information
Nominal Length Quantity
Per Carton
Approx. Ship. Wt.
inch cm lb kg
10 25 6 5 2.3
20 51 6 8 3.8
30 76 6 13 5.9
40 102 6 17 7.7
