Underdrain Components
swtwater.com Molded Polypropylene Laterals
Molded Polypropylene Lateral with 3/4-inch MNPT Connection Molded Polypropylene Laterals feature a modular design which allows them to be quickly disassembled and reassembled for easy cleaning.
Made in USA.

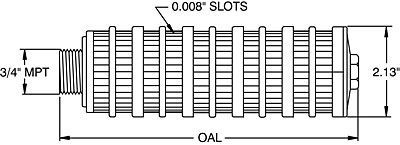

Molded Polypropylene Lateral Dimension Drawing
PART
NUMBER
OVERALL LENGTH (OAL)
INCHES MILLIMETERS
LP-L75042008-PP 4.2 107
LP-L75054008-PP 5.4 138
LP-L75066008-PP 6.6 168
LP-L75078008-PP 7.8 199
LP-L75090008-PP 9.0 229
LP-L75103008-PP 10.3 262
LP-L75115008-PP 11.5 293
LP-L75127008-PP 12.7 323
LP-L75139008-PP 13.9 354
LP-L75151008-PP 15.1 384
LP-L75164008-PP 16.4 417
LP-L75176008-PP 17.6 448
LP-L75188008-PP 18.8 478
LP-L75200008-PP 20.0 508
LP-L75212008-PP 21.2 539
LP-L75225008-PP 22.5 572
LP-L75237008-PP 23.7 602
LP-L75249008-PP 24.9 633
LP-L75261008-PP 26.1 663
LP-L75273008-PP 27.3 694
