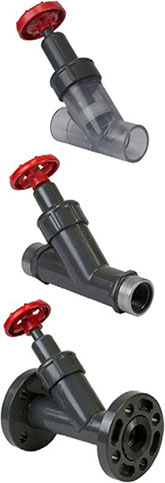

SWT Y-Pattern Globe Valves
Y-Pattern Globe Valves are angle seat valves that provide proportional opening to seating disc travel. They are available in sizes 1/2 through 4 inch and are used primarily for throttling purposes. Y-pattern globe valves may be considered general purpose flow control valves. They are generally faster to open and close than gate valves. The seating surfaces are less subject to wear and their high pressure drop makes them useful controlling pressures. The Y-pattern configuration reduces pressure loss over that of standard globe valves.
• Chemical & Corrosion Resistant PVC Gray, PVC Clear, or CPVC Gray Construction
• Buttress Thread Bonnet
• Fully Serviceable, Replaceable Components
• Standard O-ring Seal Seating Disc & Seals
• EPDM or FKM O-rings
• High Impact Polypropylene Handle
• Assembled with Silicone-Free, Water Soluble Lubricants
• 150 psi @ 73°F for 1/2 to 2 inch models
90 psi @ 73°F for 3 to 4 inch models
• Made in USA

PART NUMBER MATRIX
  YGV   05   PC   –   E   –   SOC
  PRODUCT CODE   (CS)   (BM)       (OM)       (EC)

(CS) CONNECTION SIZE:
05 = 1/2 inch
07 = 3/4 inch
10 = 1 inch
12 = 1-1/4 inch
15 = 1-1/2 inch
20 = 2 inch
30 = 3 inch
40 = 4 inch		   (BM) BODY MATERIAL:
PC = PVC Clear
PG = PVC Gray
CG = CPVC Gray		   (OM) O-RING MATERIAL:
E = EPDM
F = FKM		   (EC) END CONNECTORS:
SOC = Socket
SRT = SR Thread
FLG = Flange
SUN = Socket Union
STU = SR Thread Union
EXAMPLES:
YGV05PC-E-SOC = Clear PVC Valve with 1/2 inch socket connections and EPDM O-rings
YGV40CG-F-FLG = Gray CPVC Valve with 4 inch flange connections and FKM O-rings

Cv Values
VALVE SIZE Cv VALUE
1/2 inch 6.7
3/4 inch 12.6
1 inch 22.9
1-1/4 inch 33.8
1-1/2 inch 50.7
2 inch 79.2
3 inch 235
4 inch 387

Temperature Pressure Ratings
System
Operating
Temperature		 Valve Pressure Rating
1/2 to 2 inch Valves 3 to 4 inch Valves
PVC CPVC PVC CPVC
100°F (38°C) 150 psi (1.03 MPa) 150 psi (1.03 MPa) 90 psi (0.70 MPa) 90 psi (0.70 MPa)
110°F (43°C) 135 psi (0.93 MPa) 140 psi (0.97 MPa) 85 psi (0.62 MPa) 85 psi (0.62 MPa)
120°F (49°C) 110 psi (0.76 MPa) 130 psi (0.90 MPa) 75 psi (0.52 MPa) 80 psi (0.55 MPa)
130°F (54°C) 75 psi (0.52 MPa) 120 psi (0.83 MPa) 60 psi (0.41 MPa) 75 psi (0.52 MPa)
140°F (60°C) 50 psi (0.34 MPa) 110 psi (0.76 MPa) 40 psi (0.30 MPa) 70 psi (0.48 MPa)
150°F (66°C) — 100 psi (0.70 MPa) — 60 psi (0.41 MPa)
160°F (71°C) — 90 psi (0.62 MPa) — 50 psi (0.34 MPa)
170°F (77°C) — 80 psi (0.55 MPa) — 45 psi (0.31 MPa)
180°F (82°C) — 70 psi (0.48 MPa) — 40 psi (0.30 MPa)
190°F (88°C) — 60 psi (0.41 MPa) — 35 psi (0.24 MPa)
200°F (93°C) — 50 psi (0.34 MPa) — 30 psi (0.21 MPa)

Replacement Parts Available
Y-Valve Parts Drawing 01 Y-Valve Parts Drawing 02 01. Body (Qty 1)
02. Stem Assembly (Qty 1)
03. Seal Carrier O-ring (Qty 1)
04. Bonnet Nut (Qty 1)
05. Bonnet (Qty 1)
06. Handwheel (Qty 1)
07. Stem Nut (Qty 1)
08. Union O-ring (Qty 2)
09. Union Socket End (Qty 2)
10. Union SR Thread End (Qty 2)


DIMENSIONS AND WEIGHTS
Socket Y-Pattern Globe Valves Dimensions Drawing
Socket Y-Pattern Globe Valves
Nominal
Size
Inches		 Dimension Reference Inches, ±1/16 Approx Wt. lb
A1 A B C D E PVC CPVC
1/2 6-3/8 4-9/16 1-5/8 3-3/8 4 2-3/8 0.31 0.33
3/4 7-1/2 5-1/4 2 4 4-9/16 2-3/8 0.50 0.53
1 6-15/16 5-7/8 2-1/2 4-3/4 5-1/8 2-3/8 0.78 0.90
1-1/4 10-15/16 7-5/8 3-1/16 5-9/16 6-1/2 3-1/2 1.21 1.28
1-1/2 12 8-5/8 3-9/16 6-5/16 7-1/2 3-1/2 1.66 1.76
2 13-13/16 9-15/16 4-1/2 7-1/2 8-1/2 3-1/2 2.96 3.10
3 20 14-1/2 6-9/16 10-5/16 12-7/16 6-5/8 5.34 5.64
4 25-1/2 18-1/4 8-5/8 13-1/8 15-5/8 7-15/16 9.97 10.45


SR Thread Y-Pattern Globe Valves Dimensions Drawing
SR Thread Y-Pattern Globe Valves
Nominal
Size
Inches		 Dimension Reference Inches, ±1/16 Approx Wt. lb
A1 A B C D E PVC CPVC
1/2 6-1/2 4-11/16 3-5/8 5-1/16 4 2-3/8 0.31 0.33
3/4 7-5/8 5-7/16 4-3/8 5-13/16 4-9/16 2-3/8 0.50 0.53
1 8-5/8 6-1/8 5-3/16 7 5-1/8 2-3/8 0.85 0.90
1-1/4 11-1/8 7-3/4 6 7-15/16 6-1/2 3-1/2 1.21 1.28
1-1/2 12-1/4 8-7/8 6-15/16 8-13/16 7-1/2 3-1/2 1.66 1.76
2 14-1/16 10-3/16 8-1/8 10-1/8 8-1/2 3-1/2 2.96 3.10
3 20 14-13/16 11 14-1/4 12-7/16 6-5/8 5.34 5.64
4 25-13/16 18-1/2 14 14-3/4 15-5/8 7-15/16 9.97 10.45


Flange Y-Pattern Globe Valves Dimensions Drawing
Flange Y-Pattern Globe Valves
Nominal
Size
Inches		 Dimension Reference Inches, ±1/16 Approx Wt. lb
A1 A B C D E PVC CPVC
1/2 7-9/16 5-3/4 5-11/16 3-1/2 4 2-3/8 0.82 0.85
3/4 8-3/4 6-1/2 6-7/16 3-7/8 4-9/16 2-3/8 1.23 1.28
1 9-3/4 7-1/4 7-1/4 4-1/4 5-1/8 2-3/8 1.70 1.81
1-1/4 12-1/4 8-7/8 8-1/8 4-5/8 6-1/2 3-1/2 2.40 2.52
1-1/2 13-3/8 10 9-3/16 5 7-1/2 3-1/2 3.07 3.25
2 15-3/8 11-1/2 10-3/8 6 8-1/2 3-1/2 5.20 5.42
3 21-11/16 16-3/16 12-1/16 7-1/2 12-7/16 6-5/8 9.44 10.07
4 27-7/16 20-3/16 14-9/16 9-1/16 15-5/8 7-15/16 14.87 16.15


True Union Y-Pattern Globe Valves Dimensions Drawing
True Union (Socket) Y-Pattern Globe Valves
Nominal
Size
Inches		 Dimension Reference Inches, ±1/16 Approx Wt. lb
A1 A B C D E PVC CPVC
1/2 7 5-3/16 5-1/8 6-7/8 4-1/4 2-5/8 0.59 0.62
3/4 8-3/16 6 5-7/8 7-7/8 4-7/8 2-5/8 0.97 1.02
1 9-1/8 6-5/8 6-1/2 8-3/4 5-3/8 2-5/8 1.33 1.41
1-1/4 11-1/2 8-3/16 7-7/16 9-15/16 6-5/8 3-1/2 1.53 1.63
1-1/2 12-13/16 9-3/8 8-3/16 10-15/16 7-9/16 3-1/2 3.06 3.25
2 14-9/16 10-11/16 9-7/16 12-7/16 8-5/8 3-1/2 4.90 5.16
3 21-1/8 15-5/8 13-5/8 17-3/8 12-1/2 6-5/8 14.06 14.37
4 25 19-7/16 17-1/16 21-5/8 7-15/16 7-15/16 17.39 19.23

True Union (SR Thread) Y-Pattern Globe Valves
Nominal
Size
Inches		 Dimension Reference Inches, ±1/16 Approx Wt. lb
A1 A B C D E PVC CPVC
1/2 7 5-3/16 5-1/2 7 4-1/4 2-5/8 0.59 0.62
3/4 8-3/16 6 6-7/16 7-7/8 4-7/8 2-5/8 0.97 1.02
1 9-1/8 6-5/8 7-3/8 9 5-3/8 2-5/8 1.33 1.41
1-1/4 11-1/2 8-3/16 6-3/16 10-1/8 6-5/8 3-1/2 1.53 1.63
1-1/2 12-13/16 9-3/8 9 10-15/16 7-9/16 3-1/2 3.06 3.25
2 14-9/16 10-11/16 10-13/16 12-13/16 8-5/8 3-1/2 4.90 5.16
3 21-1/8 15-5/8 15-3/8 18-3/16 12-1/2 6-5/8 14.06 14.37
4 25 19-7/16 19-1/4 22-5/16 7-15/16 7-15/16 17.39 19.23
