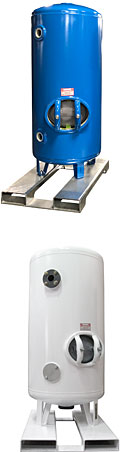

SWT mobile (PEDI) steel tanks
SWT’s Mobile Steel Tanks are UL classified for drinking water system components in accordance with NSF/ANSI Standard 61-(1992) 7N44. They are available with polyethylene or Plasite 4110 vinyl ester lining.

All steel tanks have two 2 inch pad flange top and bottom openings; 2 or 3 inch pad flange inlet and outlet openings located on the side wall of the tank; a 12 x 16 inch manway; and a bolted-on galvanized fork tube base. All tanks larger than 36 inches in diameter come standard with lift lugs. SWT's steel tanks are durable, rustproofed, and built to last.

These pressure vessels are available in both non-code and ASME code construction. Made in USA.

Meets all requirements for both FDA and US Department of Agriculture
Single drilled pad flanges
Polyethylene (PE) lining is repairable with heat in the field
100 psi maximum operating pressure
Polyethylene: 100°F maximum operating temperature
Plasite 4110 Viny Ester: 140°F maximum operating temperature
Standardized equipment means faster shipping
Custom designs available
Optional sight glass available


New Steel Tank Configuration Worksheet
Mobile Steel Tanks Configuration Worksheet (Fillable PDF Form)
This fillable PDF form is designed to make everyone's life easier. When requesting new mobile steel tanks, all of the relevant information is included in this easy-to-complete form.
INSTRUCTIONS:
1. Download the PDF form to your computer.
2. Open the form in your PDF Reader application.
3. Fill in the relevant fields (light blue color areas) using your keyboard.
4. Save a copy of the completed form to your computer.
5. Email the completed copy to info@swtwater.com, and we'll process your request lickety-split and get back to you with the pertinent follow-up information.


Non-Code Mobile Steel Tanks Specifications
SWT Non-Code Steel Tanks Dimensions Drawing

Part
Number
Tank
Size
Inches
Inlet
and
Outlet
Volume Dimensions
Total
Volume
Cu. Ft.
Head *
Volume
Cu. Ft.
Overall
Height
Inches
Dim A
Inches
Dim B
Inches
Dim C
Inches
Dim D
Inches
Polyethylene (PE) Lined Non-Code Tanks
UQ-2460MPE-2(?) 24 x 60 2" PAD 17 0.8 77 14 46.50 28 37
UQ-3057MPE-2(?) 30 x 57 2" PAD 26 1.9 79 18 41.25 31 43
UQ-3654MPE-2(?) 36 x 54 2" PAD 37 3.0 79 20 38.25 37 49
UQ-4252MPE-3(?) 42 x 52 3" PAD 50 4.6 79 21 36.25 43 55
UQ-4848MPE-3(?) 48 x 48 3" PAD 63 7.0 79 23 32.25 49 61
Plasite 4110 Vinyl Ester (VE) Lined Non-Code Tanks
UQ-2460MVE-2(?) 24 x 60 2" PAD 17 0.8 77 14 46.50 28 37
UQ-3057MVE-2(?) 30 x 57 2" PAD 26 1.9 79 18 41.25 31 43
UQ-3654MVE-2(?) 36 x 54 2" PAD 37 3.0 79 20 38.25 37 49
UQ-4252MVE-3(?) 42 x 52 3" PAD 50 4.6 79 21 36.25 43 55
UQ-4848MVE-3(?) 48 x 48 3" PAD 63 7.0 79 23 32.25 49 61
(?) Substitute B for safety blue epoxy finish coat; or W for white epoxy finish coat.
     Example: UQ-2460MPE-2B is 24 x 60 blue colored mobile steel tank with polyethylene lining.
* Head Volume includes the straight flange of the head.
Custom sizes available.


ASME Code Mobile Steel Tanks Specifications

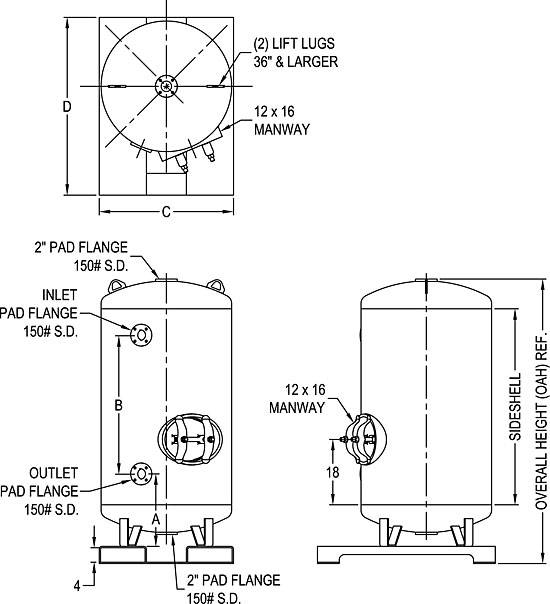

SWT ASME Code Steel Tanks Dimensions Drawing

Part
Number
Tank
Size
Inches
Inlet
and
Outlet
Volume Dimensions
Total
Volume
Cu. Ft.
Head *
Volume
Cu. Ft.
Overall
Height
Inches
Dim A
Inches
Dim B
Inches
Dim C
Inches
Dim D
Inches
Polyethylene (PE) Lined ASME Code Tanks
UQ-2460MPE-2(?)-ASME 24 x 60 2" PAD 81 15.7 46.50 28 37
UQ-3057MPE-2(?)-ASME 30 x 57 2" PAD 84 20.2 41.25 31 43
UQ-3654MPE-2(?)-ASME 36 x 54 2" PAD 85 22.7 38.25 37 49
UQ-4252MPE-3(?)-ASME 42 x 52 3" PAD 86 24.2 36.25 43 55
UQ-4848MPE-3(?)-ASME 48 x 48 3" PAD 85 25.8 32.25 49 61
Plasite 4110 Vinyl Ester (VE) Lined ASME Code Tanks
UQ-2460MVE-2(?)-ASME 24 x 60 2" PAD 81 15.7 46.50 28 37
UQ-3057MVE-2(?)-ASME 30 x 57 2" PAD 84 20.2 41.25 31 43
UQ-3654MVE-2(?)-ASME 36 x 54 2" PAD 85 22.7 38.25 37 49
UQ-4252MVE-3(?)-ASME 42 x 52 3" PAD 86 24.2 36.25 43 55
UQ-4848MVE-3(?)-ASME 48 x 48 3" PAD 85 25.8 32.25 49 61
(?) Substitute B for safety blue epoxy finish coat; or W for white epoxy finish coat.
     Example: UQ-2460MPE-2B-ASME is 24 x 60 blue colored ASME code mobile steel tank with polyethylene lining.
* Head Volume includes the straight flange of the head.
Custom sizes available.
