Filtration Media
swtwater.com Filter-Ag® Filtration Media
Particulate Reduction Media
Filter-Ag (P/N Filter-Ag) is a very efficient filter medium for the removal of suspended material and turbidity. Less pressure loss and finer filtration is possible because of its light weight and irregular surface characteristics. Filter-Ag granules have irregular surface characteristics affording maximum removal of suspended matter throughout the filter bed. Filter-Ag can be applied to systems designed for either pressure or gravity flow.


Filter-Ag has many outstanding advantages over the more common granular filter media used for suspended solids removal. A substantial savings can be realized with Filter-Ag because equipment can be smaller, requiring less square footage. Filter-Ag is a lightweight substance which means additional savings in backwash rates. Filter-Ag typically removes the normal suspended solids, down to the 20 to 40 micron range.

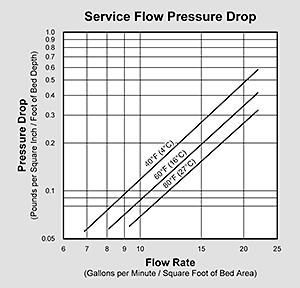

Filter-Ag Pressure Drop Graph

PRESSURE DROP — The graph above shows the expected pressure loss per foot of bed depth as a function of flow rate at various temperatures.

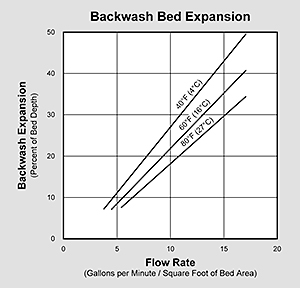

Filter-Ag Backwash Graph

BACKWASH — The graph above shows the expansion characteristics as a function of flow rate at various temperatures.


Filter-Ag® is a registered trademark of Clack Corporation.
NSF Certified Logo
Certified to NSF/ANSI/CAN Std. 61

    Features:
  • Larger particle size creates less pressure loss, higher sediment loading, and longer filter runs
  • Light weight provides lower backwash rates and better bed expansion
  • High sediment reduction capacity
  • High service rates result in lower equipment costs
  • Certified to NSF/ANSI/CAN Standard 61


TYPICAL PROPERTIES
Part Number FILTER-AG
Color Light gray to near white
Effective Size 0.67 mm
Uniformity Coefficient 2.1 ± 0.1
Hardness (Mohs scale) 6
Mesh Size 10 x 34
Specific Gravity 2.25 gm per cc
Bulk Density 24 to 26 lb per cu.ft.
Packaging 1 cu.ft. bags
(70 bags per pallet)

SUGGESTED OPERATING CONDITIONS
Water pH Wide range
Water Temperature 140°F (60°C) maximum
Bed Depth 24 to 36 inches
Freeboard 50% of bed depth minimum
Service Flow Rate 5 gpm/sq.ft.
Backwash Flow Rate 8 to 10 gpm/sq.ft.
Backwash Bed Expansion 20 to 40% of bed depth

NOTES
Upon installation allow bed to soak overnight before
backwashing.
NOT FOR INSTALLATION IN CALIFORNIA.
View SWT Filtration Media Guide


CALIFORNIA PROPOSITION 65 WARNING
This product can expose you to crystalline silica and quartz, which is known to the State of California to cause cancer. For more information go to...
www.P65Warnings.ca.gov


This filter media does not remove or kill bacteria. Do not use with water that is microbiologically unsafe or of unknown quality without adequate disinfection before or after the system.


This information has been gathered from standard materials and or test data that is believed to be accurate and reliable. Nothing herein shall be determined to be a warranty or representation expressed or implied with respect to the use of such information or the use of the goods described for any particular purpose alone or in combination with other goods or processes, or that their use does not conflict with existing patent rights. No license is granted to practice any patented invention. It is solely for your consideration, investigation and verification.
