swtwater.com Carbon Block Cartridges
with lead reduction
SWT Cartridge Block Cartridges with Lead Reduction

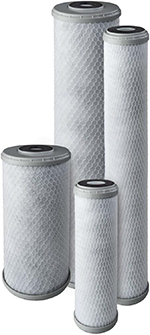

Pictured above (left to right):
CB90410
CB90420
CB90010
CB90020
Working Temperature
39.2°F to 125°F
4°C to 52°C
Designed to reduce lead, volatile organic compounds, cyst, chlorine, taste, odor and sediments
These filter cartridges are designed to perform at high flow rates with a low pressure drop. They have a high adsorptive capability and dirt holding capacity with shorter flush time to efficiently reduce lead and other contaminants from water. The cartridges are available in 10 and 20 inch lengths with a nominal filtration rate at 0.5 micron.

Carbon block cartridges with lead reduction are ideal for a wide range of residential, food service, commercial, and industrial applications.

Features
Reduces lead, VOC, cysts, chlorine, sediments, taste & odor
0.5 micron filtration
Double open-ended (DOE) configuration
Tested and certified by NSF International against NSF/ANSI Standard 42 for materials
Made in USA

Materials
Filter media: Coconut Shell Carbon
End-caps: Polypropylene
Gaskets: Trexprene
Outer wrap: Polypropylene
Netting: Polypropylene


Carbon Block Cartridges with Lead Reduction
Part
Number
Description Size (OD x L)
Inches
Micron
Rating
Initial Pressure Drop
@ Flow Rate
Capacity
CB90010 Carbon Block 2-1/2 x 10 0.5 4.0 psi @ 0.75 gpm
(0.28 bar @ 2.8 lpm)
2,500 g @ 0.75 gpm
(9,450 l @ 2.8 lpm)
CB90020 Carbon Block 2-1/2 x 20 0.5 6.0 psi @ 1.5 gpm
(0.42 bar @ 5.7 lpm)
5,000 g @ 1.5 gpm
(18,900 l @ 5.7 lpm)
CB90410 Carbon Block 4-1/2 x 10 0.5 8.8 psi @ 2.5 gpm
(0.61 bar @ 9.5 lpm)
8,000 g @ 2.5 gpm
(30,240 l @ 9.5 lpm)
CB90420 Carbon Block 4-1/2 x 20 0.5 10.0 psi @ 3.6 gpm
(0.69 bar @ 13.7 lpm)
17,000 g @ 5 gpm
(64,260 l @ 18.9 lpm)
Similar Product — Made in China
Part
Number
Description Size (OD x L)
Inches
Micron
Rating
Initial Pressure Drop
@ Flow Rate
Capacity
LU90010 Carbon Block 2-7/8 x 9-3/4 0.5 15.0 psi @ 1.0 gpm
(1.0 bar @ 3.8 lpm)
2,000 g @ 0.6 gpm
(7,570 l @ 3.8 lpm)


Flow Rate vs Pressure Drop
Pressure Drop Graph for 4.5 inch Cartridges Pressure Drop Graph for 4.5 inch Cartridges


NOTES:
Performance and capacity claims are based on independent and internal testing, and upon the filter cartridge being integrated with a complete system (i.e. filter, housing, fittings, tubing) connected to a regulated pressurized water source.
The system must be operated according to system installation and operation manual, for proper installation and proper filter cartridge replacement process. It is essential to follow operational, maintenance and filter replacement procedures to ensure proper filter cartridge performance.
The cartridge capacity may vary upon the of the inlet water conditions and according to flow rate and inlet line pressure, which may require more frequent filter cartridge replacement.
The contaminants and substances reduced by this filter cartridge are not necessarily in user's water.
Do not use with water that is microbiologically unsafe or of unknown quality without adequate disinfection before and after the system.
To start, flush the system for five (5) minutes before use.
