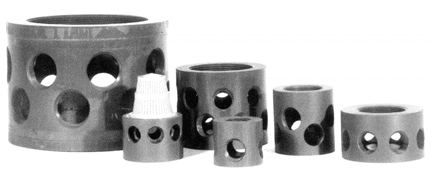

TECHNICAL SPECIFICATIONS |
Max. Recommended Operating Temperature: 140°F (60°C) |
Max. Recommended Operating Pressure: 150 psi |
Material: PVC (standard); Other materials available include CPVC, Polypropylene, PVDF, Kynar, PTFE, Teflon |
|
|
|
|
|
|
TYPICAL MOUNTING CONFIGURATIONS |
|
|
|
|
|
|
STANDARD
BOTTOM
MOUNT |
STANDARD
TOP
MOUNT |
STANDARD
SIDE
MOUNT |
TYPE A
BOTTOM
MOUNT |
TYPE B
TOP
MOUNT |
TYPE B
SIDE
MOUNT |
|
|
ORDERING INFORMATION |
Part Number Matrix: |
SM – C (PS) (LS) (NL) (PP) |
|
(PS) Piping Size
034 = 3/4 inch
1 = 1 inch
14 = 1-1/4 inch
15 = 1-1/2 inch
2 = 2 inch
25 = 2-1/2 inch
3 = 3 inch
4 = 4 inch
6 = 6 inch
8 = 8 inch |
|
(LS) Lateral Ports Size
02 = 1/4 inch FNPT
03 = 3/8 inch FNPT
12 = 1/2 inch FNPT
34 = 3/4 inch FNPT
1 = 1 inch FNPT
14 = 1-1/4 inch FNPT
15 = 1-1/2 inch FNPT
2 = 2 inch FNPT |
|
(NL) Number of Lateral Ports *
EXAMPLES:
4 = 4 Lateral Ports
8 = 8 Lateral Ports
16 = 16 Lateral Ports |
(PP) Lateral Ports Pitch
None = Standard
A = Type A
B = Type B |
* View recommendations. |
|
|
EXAMPLES: |
SM-C034024 is a standard style hub with 3/4 inch piping size and (4) 1/4 inch FNPT lateral ports. |
SM-C2348A is a Type A style hub with 2 inch piping size and (8) 3/4 inch FNPT lateral ports. |
SM-C61516B is a Type B style hub with 6 inch piping size and (16) 1-1/2 inch FNPT lateral ports. |
|
|
|
3/4 INCH PIPING HUBS |
Part Number |
Style |
Piping
Size
FNPT |
Lateral Ports |
Outside
Diameter |
Overall
Height |
Size
FNPT |
Total
Number |
Number
Per Row |
SM-C034024 |
Standard |
3/4 inch |
1/4 inch |
4 |
1 Row 4 |
1-7/8 inch |
1-3/4 inch |
SM-034024A |
Type A |
3/4 inch |
1/4 inch |
4 |
1 Row 4 |
1-7/8 inch |
1-3/4 inch |
SM-C034024B |
Type B |
3/4 inch |
1/4 inch |
4 |
1 Row 4 |
1-7/8 inch |
1-3/4 inch |
|
|
1 INCH PIPING HUBS |
Part Number |
Style |
Piping
Size
FNPT |
Lateral Ports |
Outside
Diameter |
Overall
Height |
Size
FNPT |
Total
Number |
Number
Per Row |
SM-C1124 |
Standard |
1 inch |
1/2 inch |
4 |
1 Row 4 |
1-7/8 inch |
2 inch |
SM-C1124A |
Type A |
1 inch |
1/2 inch |
4 |
1 Row 4 |
1-7/8 inch |
2 inch |
SM-C1124B |
Type B |
1 inch |
1/2 inch |
4 |
1 Row 4 |
1-7/8 inch |
2 inch |
SM-C1344 |
Standard |
1 inch |
3/4 inch |
4 |
1 Row 4 |
2-3/8 inch |
2-1/8 inch |
SM-C1344A |
Type A |
1 inch |
3/4 inch |
4 |
1 Row 4 |
2-3/8 inch |
2-1/8 inch |
SM-C1344B |
Type B |
1 inch |
3/4 inch |
4 |
1 Row 4 |
2-3/8 inch |
2-1/8 inch |
|
|
1-1/4 INCH PIPING HUBS |
Part Number |
Style |
Piping
Size
FNPT |
Lateral Ports |
Outside
Diameter |
Overall
Height |
Size
FNPT |
Total
Number |
Number
Per Row |
SM-C14126 |
Standard |
1-1/4 inch |
1/2 inch |
6 |
1 Row 6 |
3 inch |
2-1/4 inch |
SM-C14126A |
Type A |
1-1/4 inch |
1/2 inch |
6 |
1 Row 6 |
3 inch |
2-1/4 inch |
SM-C14126B |
Type B |
1-1/4 inch |
1/2 inch |
6 |
1 Row 6 |
3 inch |
2-1/4 inch |
SM-C14344 |
Standard |
1-1/4 inch |
3/4 inch |
4 |
1 Row 4 |
3 inch |
2-1/4 inch |
SM-C14344A |
Type A |
1-1/4 inch |
3/4 inch |
4 |
1 Row 4 |
3 inch |
2-1/4 inch |
SM-C14344B |
Type B |
1-1/4 inch |
3/4 inch |
4 |
1 Row 4 |
3 inch |
2-1/4 inch |
|
|
1-1/2 INCH PIPING HUBS |
Part Number |
Style |
Piping
Size
FNPT |
Lateral Ports |
Outside
Diameter |
Overall
Height |
Size
FNPT |
Total
Number |
Number
Per Row |
SM-C15128 |
Standard |
1-1/2 inch |
1/2 inch |
8 |
1 Row 8 |
3 inch |
2-1/4 inch |
SM-C15128A |
Type A |
1-1/2 inch |
1/2 inch |
8 |
1 Row 8 |
3 inch |
2-1/4 inch |
SM-C15128B |
Type B |
1-1/2 inch |
1/2 inch |
8 |
1 Row 8 |
3 inch |
2-1/4 inch |
SM-C15346 |
Standard |
1-1/2 inch |
3/4 inch |
6 |
1 Row 6 |
3 inch |
2-1/4 inch |
SM-C15346A |
Type A |
1-1/2 inch |
3/4 inch |
6 |
1 Row 6 |
3 inch |
2-1/4 inch |
SM-C15346B |
Type B |
1-1/2 inch |
3/4 inch |
6 |
1 Row 6 |
3 inch |
2-1/4 inch |
|
|
2 INCH PIPING HUBS |
Part Number |
Style |
Piping
Size
FNPT |
Lateral Ports |
Outside
Diameter |
Overall
Height |
Size
FNPT |
Total
Number |
Number
Per Row |
SM-C2128A |
Type A |
2 inch |
1/2 inch |
8 |
1 Row 8 |
3.8 inch |
2-1/2 inch |
SM-C2348 |
Standard |
2 inch |
3/4 inch |
8 |
1 Row 8 |
4 inch |
2-1/2 inch |
SM-C2348A |
Type A |
2 inch |
3/4 inch |
8 |
1 Row 8 |
4 inch |
2-1/2 inch |
SM-C2348B |
Type B |
2 inch |
3/4 inch |
8 |
1 Row 8 |
4 inch |
2-1/2 inch |
SM-C23412A |
Type A |
2 inch |
3/4 inch |
12 |
2 Rows 6 |
3-13/16 inch |
3-1/2 inch |
SM-C23416B |
Type B |
2 inch |
3/4 inch |
16 |
2 Rows 8 |
4 inch |
3-3/4 inch |
SM-C2116A |
Type A |
2 inch |
1 inch |
16 |
2 Rows 8 |
5-1/2 inch |
5 inch |
SM-C2158 |
Standard |
2 inch |
1-1/2 inch |
8 |
1 Row 8 |
8-5/8 inch |
4-1/4 inch |
|
|
2-1/2 INCH PIPING HUBS |
Part Number |
Style |
Piping
Size
FNPT |
Lateral Ports |
Outside
Diameter |
Overall
Height |
Size
FNPT |
Total
Number |
Number
Per Row |
SM-C253412 |
Standard |
2-1/2 inch |
3/4 inch |
12 |
2 Rows 6 |
4 inch |
3-5/8 inch |
SM-C253412A |
Type A |
2-1/2 inch |
3/4 inch |
12 |
2 Rows 6 |
4 inch |
3-5/8 inch |
SM-C253412B |
Type B |
2-1/2 inch |
3/4 inch |
12 |
2 Rows 6 |
4 inch |
3-5/8 inch |
|
|
3 INCH PIPING HUBS |
Part Number |
Style |
Piping
Size
FNPT |
Lateral Ports |
Outside
Diameter |
Overall
Height |
Size
FNPT |
Total
Number |
Number
Per Row |
SM-C33416 |
Standard |
3 inch |
3/4 inch |
16 |
2 Rows 8 |
4-1/2 inch |
4 inch |
SM-C33416A |
Type A |
3 inch |
3/4 inch |
16 |
2 Rows 8 |
4-1/2 inch |
4 inch |
SM-C33416B |
Type B |
3 inch |
3/4 inch |
16 |
2 Rows 8 |
4-1/2 inch |
4 inch |
SM-C33424A |
Type A |
3 inch |
3/4 inch |
24 |
3 Rows 8 |
4-1/2 inch |
5-5/16 inch |
SM-C33424B |
Type B |
3 inch |
3/4 inch |
24 |
3 Rows 8 |
4-1/2 inch |
5-5/16 inch |
SM-C3120 |
Standard |
3 inch |
1 inch |
20 |
2 Rows 10 |
6 inch |
4-1/2 inch |
SM-C3120A |
Type A |
3 inch |
1 inch |
20 |
2 Rows 10 |
6 inch |
4-1/2 inch |
SM-C3148 |
Standard |
3 inch |
1-1/4 inch |
8 |
1 Row 8 |
5-1/2 inch |
4 inch |
|
|
4 INCH PIPING HUBS |
Part Number |
Style |
Piping
Size
FNPT |
Lateral Ports |
Outside
Diameter |
Overall
Height |
Size
FNPT |
Total
Number |
Number
Per Row |
SM-C4116 |
Standard |
4 inch |
1 inch |
16 |
2 Rows 8 |
5-1/2 inch |
4-5/8 inch |
SM-C4116A |
Type A |
4 inch |
1 inch |
16 |
2 Rows 8 |
5-1/2 inch |
4-5/8 inch |
SM-C4116B |
Type B |
4 inch |
1 inch |
16 |
2 Rows 8 |
5-1/2 inch |
4-5/8 inch |
SM-C4120A |
Type A |
4 inch |
1 inch |
20 |
2 Rows 10 |
7 inch |
5-3/4 inch |
SM-C4120B |
Type B |
4 inch |
1 inch |
20 |
2 Rows 10 |
7 inch |
5-3/4 inch |
SM-C4121A |
Type A |
4 inch |
1 inch |
21 |
3 Rows 7 |
7-1/4 inch |
5-1/2 inch |
SM-C41416A |
Type A |
4 inch |
1-1/4 inch |
16 |
2 Rows 8 |
6 inch |
5-3/4 inch |
SM-C41418A |
Type A |
4 inch |
1-1/4 inch |
18 |
3 Rows 6 |
5-1/2 inch |
8-1/4 inch |
SM-C41424A |
Type A |
4 inch |
1-1/4 inch |
24 |
2 Rows 12 |
12-3/4 inch |
7-1/2 inch |
SM-C41436A |
Type A |
4 inch |
1-1/4 inch |
36 |
3 Rows 12 |
12-3/4 inch |
9-3/8 inch |
SM-C4158 |
Standard |
4 inch |
1-1/2 inch |
8 |
1 Row 8 |
8-5/8 inch |
4-1/4 inch |
SM-C426 |
Standard |
4 inch |
2 inch |
6 |
1 Row 6 |
5-1/2 inch |
6-7/16 inch |
|
|
6 INCH PIPING HUBS |
Part Number |
Style |
Piping
Size
FNPT |
Lateral Ports |
Outside
Diameter |
Overall
Height |
Size
FNPT |
Total
Number |
Number
Per Row |
SM-C61424A |
Type A |
6 inch |
1-1/4 inch |
24 |
2 Rows 12 |
13 inch |
7-13/16 inch |
SM-C61424B |
Type B |
6 inch |
1-1/4 inch |
24 |
2 Rows 12 |
13 inch |
7-13/16 inch |
SM-C61436A |
Type A |
6 inch |
1-1/4 inch |
36 |
3 Rows 12 |
13 inch |
10-7/16 inch |
SM-C61516 |
Standard |
6 inch |
1-1/2 inch |
16 |
2 Rows 8 |
8-5/8 inch |
6-3/8 inch |
SM-C61516A |
Type A |
6 inch |
1-1/2 inch |
16 |
2 Rows 8 |
8-5/8 inch |
6-3/8 inch |
SM-C61516B |
Type B |
6 inch |
1-1/2 inch |
16 |
2 Rows 8 |
8-5/8 inch |
6-3/8 inch |
SM-C628 |
Standard |
6 inch |
2 inch |
8 |
1 Row 8 |
8-5/8 inch |
5-1/2 inch |
|
|
8 INCH PIPING HUBS |
Part Number |
Style |
Piping
Size
FNPT |
Lateral Ports |
Outside
Diameter |
Overall
Height |
Size
FNPT |
Total
Number |
Number
Per Row |
SM-C81436A |
Type A |
8 inch |
1-1/4 inch |
36 |
3 Rows 12 |
12-3/4 inch |
9-3/8 inch |
SM-C8220 |
Standard |
8 inch |
2 inch |
20 |
2 Rows 10 |
9-3/4 inch |
8-3/4 inch |
|
|
REFERENCE INFORMATION |
Recommended Number of Laterals Per Tank Size |
Tank Diameter |
Number of Laterals |
18 inch |
6 to 7 |
21 inch |
7 to 8 |
24 inch |
8 to 10 |
30 inch |
10 to 12 |
36 inch |
12 to 14 |
42 inch |
13 to 17 |
48 inch |
16 to 19 |
54 inch |
17 to 21 |
60 inch |
19 to 24 |
72 inch |
22 to 28 |
84 inch |
26 to 33 |
96 inch |
30 to 38 |
108 inch |
34 to 42 |
|
|
