BLS Series RO Systems are engineered to economically produce high purity water while providing the flexibility to choose system features to meet your application specifications. Units are available as skid mounted, pre-wired, and pre-piped with pre- and post-treatment equipment for a complete water purification package. Skid mounted systems provide maximum efficiency of floor space and reduced installation time and costs. |
|
|
|

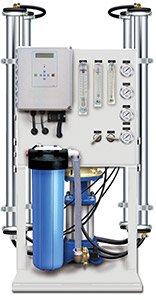

BLS 12000
12,000 gpd
8.33 gpm |

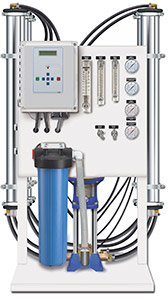

BLS 15000
15,000 gpd
10.42 gpm |

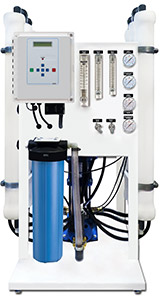

BLS 18000
18,000 gpd
12.50 gpm |
|

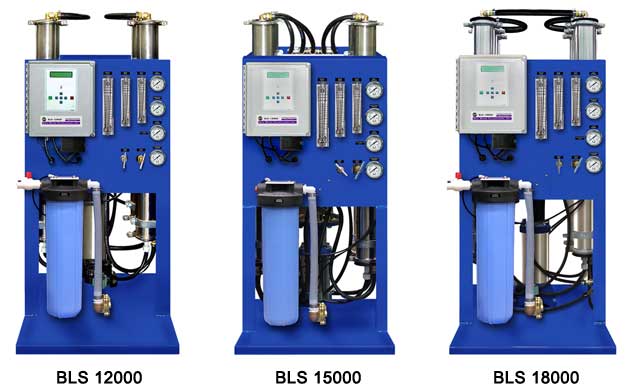

BLS 12000, 15000, 18000 Features |
• |
5 micron Sediment Pre-Filtration |
• |
Pentek® 20-inch Slim Line Housing |
• |
Low Feed Water Pressure Safety Switch |
• |
Storage Tank Float Control Connection |
• |
Pretreatment Lockout Connection |
• |
Digital TDS Monitor |
• |
On/Off Standby Switch |
• |
Product Water Flow Meter |
• |
Reject Water Flow Meter |
• |
Water Recirculation Flow Meter |
• |
Adjustable Reject Water Needle Valve |
• |
Adjustable Water Saving Recirculation Loop |
|
• |
Pre- and Post-Filter Pressure, Liquid Gauges |
• |
Operating Pressure, Liquid Gauge |
• |
Feed Water Solenoid Valve |
• |
Sta-Rite® High Pressure Booster Pump |
• |
Product Water Check Valve |
• |
John Guest® Safety Locking Clips |
• |
230V, 60Hz, 1-Phase Electrical |
• |
Powder Coated Frame |
• |
Factory Tested for Quality |
• |
Assembled in the USA |
• |
One Year Limited Warranty |
|
|
|
Choose from two feature packages to fit your application... |
Standard Models Include
• |
S-150 RO Controller |
• |
Manual Membrane Flush |
|
Optimum Models Include
• |
S-150 RO Controller |
• |
Automatic Membrane Flush |
• |
Post-Membrane Pressure Gauge |
|
|
|
Additional Features Available
• |
230V, 60Hz, 1-Phase |
• |
230V, 60Hz, 3-Phase |
• |
460V, 60Hz, 3-Phase |
• |
380V, 50Hz, 3-Phase |
|
• |
Product Water Pressure Switch with Relief Valve * |
• |
Stainless Steel Pump |
|
• |
Expanded S-150 RO
Controller |
• |
TDS Digital Monitor |
|
|
|
* |
NOTE: When ordering a BLS Series RO System, the customer must choose between a product water pressure switch (for water storage in a pressurized tank) or a water level float kit (for water storage in an atmospheric tank). See BLS Parts List. |
|
CLICK TO VIEW BLS 12000, 15000, 18000 PARTS LIST |
|
OPERATING SPECIFICATIONS |
BLS 12000 |
BLS 15000 |
BLS 18000 |
Flow Capacity, Gallons Per Day* |
12,000 GPD |
15,000 GPD |
18,000 GPD |
Flow Capacity, Gallons Per Minute* |
8.33 GPM |
10.42 GPM |
12.50 GPM |
Flow Capacity, Liters Per Day* |
45,425 LPD |
56.781 LPD |
68.137 LPD |
Flow Capacity, Liters Per Minute* |
31.5 LPM |
39.4 LPM |
43.3 LPM |
Typical Recovery |
75% |
75% |
75% |
Design Rejection Rate |
98 to 99% |
98 to 99% |
98 to 99% |
Typical Operating Pressure |
165 PSI (11.3 Bar) |
165 PSI (11.3 Bar) |
165 PSI (11.3 Bar) |
Nominal Feed Water Flow During Operation |
11 GPM (41.6 LPM) |
14 GPM (52.9 LPM) |
17 GPM (64.3 LPM) |
Nominal Feed Water Flow During System Flush |
18 GPM (68.1 LPM) |
32 GPM (121 LPM) |
36 GPM (136 LPM) |
Maximum Product Water Back Pressure |
50 PSI (3.4 Bar) |
50 PSI (3.4 Bar) |
50 PSI (3.4 Bar) |
|
|
FEED WATER PARAMETERS |
BLS 12000 |
BLS 15000 |
BLS 18000 |
Temperature Range, ºF |
40 to 90ºF |
40 to 90ºF |
40 to 90ºF |
Temperature Range, ºC |
5 to 30ºC |
5 to 30ºC |
5 to 30ºC |
Minimum Pressure |
35 PSI @ 18 GPM |
35 PSI @ 32 GPM |
35 PSI @ 36 GPM |
Maximum Pressure |
85 PSI (5.8 Bar) |
85 PSI (5.8 Bar) |
85 PSI (5.8 Bar) |
Maximum TDS |
2,000 PPM |
2,000 PPM |
2,000 PPM |
Maximum Chlorine Tolerance |
0.1 PPM |
0.1 PPM |
0.1 PPM |
Maximum Hardness |
10 GPG (171 PPM) |
10 GPG (171 PPM) |
10 GPG (171 PPM) |
Maximum Iron, Dissolved |
0.5 PPM |
0.5 PPM |
0.5 PPM |
Maximum Oil Tolerance |
Must Be Removed |
Must Be Removed |
Must Be Removed |
Maximum Silt Index |
5 |
5 |
5 |
Maximum Turbidity |
1 NTU |
1 NTU |
1 NTU |
pH Range |
3 to 10 |
3 to 10 |
3 to 10 |
Minimum Pre-Filtration |
5 Micron |
5 Micron |
5 Micron |
|
|
DESIGN SPECIFICATIONS |
BLS 12000 |
BLS 15000 |
BLS 18000 |
Dimensions, Inches (H x W x D) |
60 x 24 x 30 |
60 x 24 x 30 |
60 x 24 x 30 |
Weight, Lb |
450 Lb |
525 Lb |
600 Lb |
Feed Water Inlet Connection |
1" FNPT |
1" FNPT |
1" FNPT |
Reject Water to Drain Connection |
3/4" FNPT |
3/4" FNPT |
3/4" FNPT |
Product Water to Storage Connection |
3/4" FNPT |
3/4" FNPT |
3/4" FNPT |
Filter Housing, Inches |
(1) 20" Big Blue |
(1) 20" Big Blue |
(1) 20" Big Blue |
Membrane Housings, Inches |
(4) 4 x 40 S.S. |
(5) 4 x 40 S.S. |
(6) 4 x 40 S.S. |
Membranes Elements, Inches |
(4) 4 x 40 XLE |
(5) 4 x 40 XLE |
(6) 4 x 40 XLE |
Standard Pump, 60 Hz |
High Pressure Booster |
High Pressure Booster |
High Pressure Booster |
Optimum Pump, 60 Hz |
Vertical Centrifugal |
Vertical Centrifugal |
Vertical Centrifugal |
Standard Pump, 50 Hz |
Vertical Centrifugal |
Vertical Centrifugal |
Vertical Centrifugal |
Optimum Pump, 50 Hz |
Vertical Centrifugal |
Vertical Centrifugal |
Vertical Centrifugal |
Standard Motor, 60 Hz |
1.5 HP, 1-Phase |
2 HP, 1-Phase |
3 HP, 1-Phase |
Optimum Motor, 60 Hz |
3 HP, 3-Phase |
3 HP, 3-Phase |
3 HP, 3-Phase |
Standard Motor, 50 Hz |
3 HP, 3-Phase |
4 HP, 3-Phase |
4 HP, 3-Phase |
Optimum Motor, 50 Hz |
3 HP, 3-Phase |
4 HP, 3-Phase |
4 HP, 3-Phase |
|
* Based on feed water with 500 mg/L of NaCl and temperature of 77ºF (25ºC). |
System production may vary depending upon incoming water temperature and chemistry. |
NOTE: If the RO system is used with chlorinated water, a carbon pre-filter is required. BLS systems are designed for use on potable water sources only. See BLS Parts List. |
|
Low Feed Water Pressure Switch |
System shuts down at 15 PSI (1.0 Bar) decreasing pressure |
Product Water Pressure Switch |
System shuts down at 45 PSI (3.1 Bar) and starts at 25 PSI (1.7 Bar) |
Max. System Operating Pressure |
175 PSI (12.1 Bar) |
|
|
|
