BLS 400 |
BLS 800 |
BLS 950 |
BLS 1900 |
BLS 2400 |
|
Click on an image for more details. |
CLICK TO VIEW BLS 3000, 6000, 9000, 12000, 15000, 18000 SYSTEMS PARTS LIST |
BLS 400 - 2400 Systems |
Part Number |
Description |
GPD * |
LPD * |
Electrical Requirement |
Voltage |
Hertz |
Phase |
RG-939004000 |
BLS 400 Econo |
400 |
1,514 |
115 V |
60 Hz |
1 Ph |
RG-939004006 |
BLS 400 Standard |
400 |
1,514 |
115 V |
60 Hz |
1 Ph |
RG-939004007 |
BLS 400 Optimum |
400 |
1,514 |
115 V |
60 Hz |
1 Ph |
RG-939004001 |
BLS 400 Econo |
400 |
1,514 |
220 V |
50 Hz |
1 Ph |
RG-939004005 |
BLS 400 Standard |
400 |
1,514 |
220 V |
50 Hz |
1 Ph |
RG-939004008 |
BLS 400 Optimum |
400 |
1,514 |
220 V |
50 Hz |
1 Ph |
RG-939008000 |
BLS 800 Econo |
800 |
3,028 |
115 V |
60 Hz |
1 Ph |
RG-939008006 |
BLS 800 Standard |
800 |
3,028 |
115 V |
60 Hz |
1 Ph |
RG-939008007 |
BLS 800 Optimum |
800 |
3,028 |
115 V |
60 Hz |
1 Ph |
RG-939008001 |
BLS 800 Econo |
800 |
3,028 |
220 V |
50 Hz |
1 Ph |
RG-939008005 |
BLS 800 Standard |
800 |
3,028 |
220 V |
50 Hz |
1 Ph |
RG-939008008 |
BLS 800 Optimum |
800 |
3,028 |
220 V |
50 Hz |
1 Ph |
RG-939009500 |
BLS 950 Econo |
950 |
3,596 |
115 V |
60 Hz |
1 Ph |
RG-939009506 |
BLS 950 Standard |
950 |
3,596 |
115 V |
60 Hz |
1 Ph |
RG-939009507 |
BLS 950 Optimum |
950 |
3,596 |
115 V |
60 Hz |
1 Ph |
RG-939009501 |
BLS 950 Econo |
950 |
3,596 |
220 V |
50 Hz |
1 Ph |
RG-939009505 |
BLS 950 Standard |
950 |
3,596 |
220 V |
50 Hz |
1 Ph |
RG-939009508 |
BLS 950 Optimum |
950 |
3,596 |
220 V |
50 Hz |
1 Ph |
RG-939019000 |
BLS 1900 Econo |
1,900 |
7,192 |
115 V |
60 Hz |
1 Ph |
RG-939019006 |
BLS 1900 Standard |
1,900 |
7,192 |
115 V |
60 Hz |
1 Ph |
RG-939019007 |
BLS 1900 Optimum |
1,900 |
7,192 |
115 V |
60 Hz |
1 Ph |
RG-939019001 |
BLS 1900 Econo |
1,900 |
7,192 |
220 V |
50 Hz |
1 Ph |
RG-939019005 |
BLS 1900 Standard |
1,900 |
7,192 |
220 V |
50 Hz |
1 Ph |
RG-939019008 |
BLS 1900 Optimum |
1,900 |
7,192 |
220 V |
50 Hz |
1 Ph |
RG-939024006 |
BLS 2400 Standard |
2,400 |
9,085 |
115 V |
60 Hz |
1 Ph |
RG-939024007 |
BLS 2400 Optimum |
2,400 |
9,085 |
115 V |
60 Hz |
1 Ph |
|
* |
Based on feed water with 500 mg/L NaCl and temperature of 25ºC (77ºF). Minimum
membrane element salt rejection is 95% - 99%. |
|
REQUIRED: |
|
|
|
NOTE: |
To properly function, all BLS Series RO Systems require either: |
|
A) a product water pressure switch (for pressurized storage tanks), or |
|
B) a water level float kit (for atmospheric water tanks). |
|
|
|
PRODUCT WATER PRESSURE SWITCH
WITH RELIEF VALVE FOR PRESSURE TANKS
|
WATER LEVEL FLOAT KIT (FDA APPROVED FLOATS)
FOR ATMOSPHERIC TANKS |
BLS 400 (P/N RG-93919-4) |
BLS 400 (P/N RG-0050207) |
BLS 800 (P/N RG-93919-8) |
BLS 800 (P/N RG-0050207) |
BLS 950 (P/N RG-93919-9) |
BLS 950 (P/N RG-0050207) |
BLS 1900 (P/N RG-93919-19) |
BLS 1900 (P/N RG-0050207) |
BLS 2400 (P/N RG-93919-24) |
BLS 2400 (P/N RG-0050207) |
|
|
OPTIONAL FEATURES & ACCESSORIES: |
|
|
|
CARBON PRE-FILTER — 20 INCH HOUSING
WITH 10 MICRON CARBON BLOCK
|
TDS IN-LINE MONITOR
WITH RED & GREEN LIGHT
|
BLS 400 (P/N RG-93901) |
BLS 400 (P/N RG-075019) |
BLS 800 (P/N RG-93901) |
BLS 800 (P/N RG-075019) |
BLS 950 (P/N RG-93902) |
BLS 950 (P/N RG-075019) |
BLS 1900 (P/N RG-93902) |
BLS 1900 (P/N RG-075019) |
BLS 2400 (P/N RG-93902) |
BLS 2400 (P/N RG-075019) |
|
|
STAINLESS STEEL PUMP
FOR 60 Hz UNITS
|
STAINLESS STEEL PUMP
FOR 50 Hz UNITS |
BLS 400 (P/N RG-93912-4) |
BLS 400 (P/N RG-93913-4) |
BLS 800 (P/N RG-93912-8) |
BLS 800 (P/N RG-93913-8) |
BLS 950 (P/N RG-93912-9) |
BLS 950 (P/N RG-93913-9) |
BLS 1900 (P/N RG-93912-19) |
BLS 1900 (P/N RG-93913-19) |
BLS 2400 (P/N RG-93912-24) |
BLS 2400 (N/A) |
|
|
STAINLESS STEEL FRAME |
DOMESTIC EXPORT CRATING |
BLS 400 (P/N RG-93915-4) |
BLS 400 (P/N RG-93914-4) |
BLS 800 (P/N RG-93915-8) |
BLS 800 (P/N RG-93914-8) |
BLS 950 (P/N RG-93915-9) |
BLS 950 (P/N RG-93914-9) |
BLS 1900 (P/N RG-93915-19) |
BLS 1900 (P/N RG-93914-19) |
BLS 2400 (P/N RG-93915-24) |
BLS 2400 (P/N RG-93914-24) |
|
|
|
REPLACEMENT PARTS: |
|
|
BLS 400 |
— |
(1) 400 GPD RO Membrane, 2.5" x 21"
(P/N RG-7030252101) |
— |
(1) Pre-filter Sediment Cartridge — System-Guard™ Spun PP, Graded Density to 1 micron, 2.5" x 20"
(P/N SO72001) |
|
|
BLS 800 |
— |
(2) 400 GPD RO Membrane, 2.5" x 21"
(P/N RG-7030252101) |
— |
(1) Pre-filter Sediment Cartridge — System-Guard™ Spun PP, Graded Density to 1 micron, 2.5" x 20"
(P/N SO72001) |
|
|
BLS 950 |
— |
(1) 900 GPD RO Membrane, 2.5" x 40"
(P/N RG-7030254002) |
— |
(1) Pre-filter Sediment Cartridge — System-Guard™ Spun PP, Graded Density to 1 micron, 2.5" x 20"
(P/N SO72001) |
|
|
BLS 1900 |
— |
(2) 900 GPD RO Membrane, 2.5" x 40"
(P/N RG-7030254002) |
— |
(1) Pre-filter Sediment Cartridge — System-Guard™ Spun PP, Graded Density to 1 micron, 2.5" x 20"
(P/N SO72001) |
|
|
BLS 2400 |
— |
(1) 3,000 GPD RO Membrane, 4" x 40"
(P/N RG-7030404002) — DISCONTINUED. Replaced by RG-7030404005. |
— |
(1) Pre-filter Sediment Cartridge — System-Guard™ Spun PP, Graded Density to 1 micron, 2.5" x 20"
(P/N SO72001) |
|
|
A variety of ultraviolet/carbon post-filters are available. |
|
|
|
|
|
|
|
|
BLS 3000 |
BLS 6000 |
BLS 9000 |

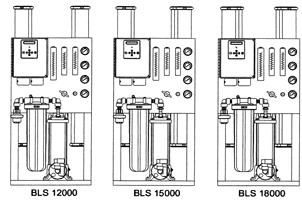

BLS 12000 |
BLS 15000 |
BLS 18000 |
|
Click on an image for more details. |
CLICK TO VIEW BLS 400, 800, 950, 1900, 2400 SYSTEMS PARTS LIST |
BLS 3000 - 18000 Systems |
Part Number |
Description |
GPD * |
LPD * |
Electrical Requirement |
Voltage |
Hertz |
Phase |
RG-939030000 |
BLS 3000 Econo |
3,000 |
11,356 |
230 V |
60 Hz |
1 Ph |
RG-939030006 |
BLS 3000 Standard |
3,000 |
11,356 |
230 V |
60 Hz |
1 Ph |
RG-939030007 |
BLS 3000 Optimum |
3,000 |
11,356 |
230 V |
60 Hz |
1 Ph |
RG-939030009 |
BLS 3000 Optimum |
3,000 |
11,356 |
460 V |
60 Hz |
3 Ph |
RG-939030001 |
BLS 3000 Econo |
3,000 |
11,356 |
220 V |
50 Hz |
1 Ph |
RG-939030005 |
BLS 3000 Standard |
3,000 |
11,356 |
220 V |
50 Hz |
1 Ph |
RG-939030008 |
BLS 3000 Optimum |
3,000 |
11,356 |
220 V |
50 Hz |
1 Ph |
RG-939060000 |
BLS 6000 Econo |
6,000 |
22,712 |
230 V |
60 Hz |
1 Ph |
RG-939060006 |
BLS 6000 Standard |
6,000 |
22,712 |
230 V |
60 Hz |
1 Ph |
RG-939060007 |
BLS 6000 Optimum |
6,000 |
22,712 |
230 V |
60 Hz |
1 Ph |
RG-939060009 |
BLS 6000 Optimum |
6,000 |
22,712 |
460 V |
60 Hz |
3 Ph |
RG-939060001 |
BLS 6000 Econo |
6,000 |
22,712 |
220 V |
50 Hz |
1 Ph |
RG-939060005 |
BLS 6000 Standard |
6,000 |
22,712 |
220 V |
50 Hz |
1 Ph |
RG-939060008 |
BLS 6000 Optimum |
6,000 |
22,712 |
220 V |
50 Hz |
1 Ph |
RG-939090000 |
BLS 9000 Econo |
9,000 |
34,068 |
230 V |
60 Hz |
1 Ph |
RG-939090006 |
BLS 9000 Standard |
9,000 |
34,068 |
230 V |
60 Hz |
1 Ph |
RG-939090007 |
BLS 9000 Optimum |
9,000 |
34,068 |
230 V |
60 Hz |
1 Ph |
RG-939090009 |
BLS 9000 Optimum |
9,000 |
34,068 |
460 V |
60 Hz |
3 Ph |
RG-939090001 |
BLS 9000 Econo |
9,000 |
34,068 |
220 V |
50 Hz |
1 Ph |
RG-939090005 |
BLS 9000 Standard |
9,000 |
34,068 |
220 V |
50 Hz |
1 Ph |
RG-939090008 |
BLS 9000 Optimum |
9,000 |
34,068 |
220 V |
50 Hz |
1 Ph |
RG-939120006 |
BLS 12000 Standard |
12,000 |
45,425 |
230 V |
60 Hz |
1 Ph |
RG-939120009 |
BLS 12000 Standard |
12,000 |
45,425 |
460 V |
60 Hz |
3 Ph |
RG-939120004 |
BLS 12000 Optimum |
12,000 |
45,425 |
230 V |
60 Hz |
1 Ph |
RG-939120007 |
BLS 12000 Optimum |
12,000 |
45,425 |
230 V |
60 Hz |
3 Ph |
RG-939120003 |
BLS 12000 Optimum |
12,000 |
45,425 |
460 V |
60 Hz |
3 Ph |
RG-939120005 |
BLS 12000 Standard |
12,000 |
45,425 |
380 V |
50 Hz |
3 Ph |
RG-939120008 |
BLS 12000 Optimum |
12,000 |
45,425 |
380 V |
50 Hz |
3 Ph |
RG-939150006 |
BLS 15000 Standard |
15,000 |
56,781 |
230 V |
60 Hz |
1 Ph |
RG-939150009 |
BLS 15000 Standard |
15,000 |
56,781 |
460 V |
60 Hz |
3 Ph |
RG-939150004 |
BLS 15000 Optimum |
15,000 |
56,781 |
230 V |
60 Hz |
1 Ph |
RG-939150007 |
BLS 15000 Optimum |
15,000 |
56,781 |
230 V |
60 Hz |
3 Ph |
RG-939150003 |
BLS 15000 Optimum |
15,000 |
56,781 |
460 V |
60 Hz |
3 Ph |
RG-939150005 |
BLS 15000 Standard |
15,000 |
56,781 |
380 V |
50 Hz |
3 Ph |
RG-939150008 |
BLS 15000 Optimum |
15,000 |
56,781 |
380 V |
50 Hz |
3 Ph |
RG-939180006 |
BLS 18000 Standard |
18,000 |
68,137 |
230 V |
60 Hz |
1 Ph |
RG-939180009 |
BLS 18000 Standard |
18,000 |
68,137 |
460 V |
60 Hz |
3 Ph |
RG-939180004 |
BLS 18000 Optimum |
18,000 |
68,137 |
230 V |
60 Hz |
1 Ph |
RG-939180007 |
BLS 18000 Optimum |
18,000 |
68,137 |
230 V |
60 Hz |
3 Ph |
RG-939180003 |
BLS 18000 Optimum |
18,000 |
68,137 |
460 V |
60 Hz |
3 Ph |
RG-939180005 |
BLS 18000 Standard |
18,000 |
68,137 |
380 V |
50 Hz |
3 Ph |
RG-939180008 |
BLS 18000 Optimum |
18,000 |
68,137 |
380 V |
50 Hz |
3 Ph |
|
* |
Based on feed water with 500 mg/L NaCl and temperature of 25ºC (77ºF). Minimum membrane element salt rejection is 95% - 99%. |
|
REQUIRED: |
|
|
|
NOTE: |
To properly function, all BLS Series RO Systems require either: |
|
A) a product water pressure switch (for pressurized storage tanks), or |
|
B) a water level float kit (for atmospheric water tanks). |
|
|
|
PRODUCT WATER PRESSURE SWITCH
WITH RELIEF VALVE FOR PRESSURE TANKS |
WATER LEVEL FLOAT KIT (FDA APPROVED FLOATS)
FOR ATMOSPHERIC TANKS |
BLS 3000 (P/N RG-93919-30) |
BLS 3000 (P/N RG-0050207) |
BLS 6000 (P/N RG-93919-60) |
BLS 6000 (P/N RG-0050207) |
BLS 9000 (P/N RG-93919-90) |
BLS 9000 (P/N RG-0050207) |
BLS 12000 (P/N RG-93919-120) |
BLS 12000 (P/N RG-0050207) |
BLS 15000 (P/N RG-93919-150) |
BLS 15000 (P/N RG-0050207) |
BLS 18000 (P/N RG-93919-180) |
BLS 18000 (P/N RG-0050207) |
|
|
OPTIONAL FEATURES & ACCESSORIES: |
|
|
|
CLEAN-IN-PLACE PORT CONNECTIONS |
STAINLESS STEEL FRAME |
BLS 3000 (P/N RG-93920-30) |
BLS 3000 (P/N RG-93915-30) |
BLS 6000 (P/N RG-93920-60) |
BLS 6000 (P/N RG-93915-60) |
BLS 9000 (P/N RG-93920-90) |
BLS 9000 (P/N RG-93915-90) |
BLS 12000 (P/N RG-93920-120) |
BLS 12000 (P/N RG-93915-120) |
BLS 15000 (P/N RG-93920-150) |
BLS 15000 (P/N RG-93915-150) |
BLS 18000 (P/N RG-93920-180) |
BLS 18000 (P/N RG-93915-180) |
|
|
304 STAINLESS STEEL PUMP
FOR 60 Hz UNITS |
304 STAINLESS STEEL PUMP
FOR 50 Hz UNITS |
BLS 3000 (P/N RG-93912-30) |
BLS 3000 (P/N RG-93913-30) |
BLS 6000 (P/N RG-93912-60) |
BLS 6000 (P/N RG-93913-60) |
BLS 9000 (P/N RG-93912-90) |
BLS 9000 (P/N RG-93913-90) |
|
|
316 STAINLESS STEEL PUMP
FOR 60 Hz UNITS |
316 STAINLESS STEEL PUMP
FOR 50 Hz UNITS |
BLS 12000 (P/N RG-93912-120) |
BLS 12000 (P/N RG-93913-120) |
BLS 15000 (P/N RG-93912-150) |
BLS 15000 (P/N RG-93913-150) |
BLS 18000 (P/N RG-93912-180) |
BLS 18000 (P/N RG-93913-180) |
|
|
DOMESTIC EXPORT CRATING |
|
BLS 3000 (P/N RG-93914-30) |
|
BLS 6000 (P/N RG-93914-60) |
|
BLS 9000 (P/N RG-93914-90) |
|
BLS 12000 (P/N RG-93914-120) Required |
|
BLS 15000 (P/N RG-93914-150) Required |
|
BLS 18000 (P/N RG-93914-180) Required |
|
|
|
|
REPLACEMENT PARTS: |
|
|
BLS 3000 |
— |
(1) 3,000 GPD RO Membrane, 4" x 40"
(P/N RG-7030404002) — DISCONTINUED. Replaced by RG-7030404005. |
— |
(1) Pre-filter Sediment Cartridge — System-Guard™ Spun PP, Dual-Gradient from 50 to 5 micron, 4.5" x 20"
(P/N SO72005-BB) |
|
|
BLS 6000 |
— |
(2) 3,000 GPD RO Membrane, 4" x 40"
(P/N RG-7030404002) — DISCONTINUED. Replaced by RG-7030404005. |
— |
(1) Pre-filter Sediment Cartridge — System-Guard™ Spun PP, Dual-Gradient from 50 to 5 micron, 4.5" x 20"
(P/N SO72005-BB) |
|
|
BLS 9000 |
— |
(3) 3,000 GPD RO Membrane, 4" x 40"
(P/N RG-7030404002) — DISCONTINUED. Replaced by RG-7030404005. |
— |
(1) Pre-filter Sediment Cartridge — System-Guard™ Spun PP, Dual-Gradient from 50 to 5 micron, 4.5" x 20"
(P/N SO72005-BB) |
|
|
BLS 12000 |
— |
(4) 3,000 GPD RO Membrane, 4" x 40"
(P/N RG-7030404002) — DISCONTINUED. Replaced by RG-7030404005. |
— |
(1) Pre-filter Sediment Cartridge — System-Guard™ Spun PP, Dual-Gradient from 50 to 5 micron, 4.5" x 20"
(P/N SO72005-BB) |
|
|
BLS 15000 |
— |
(5) 3,000 GPD RO Membrane, 4" x 40"
(P/N RG-7030404002) — DISCONTINUED. Replaced by RG-7030404005. |
— |
(1) Pre-filter Sediment Cartridge — System-Guard™ Spun PP, Dual-Gradient from 50 to 5 micron, 4.5" x 20"
(P/N SO72005-BB) |
|
|
BLS 18000 |
— |
(6) 3,000 GPD RO Membrane, 4" x 40"
(P/N RG-7030404002) — DISCONTINUED. Replaced by RG-7030404005. |
— |
(1) Pre-filter Sediment Cartridge — System-Guard™ Spun PP, Dual-Gradient from 50 to 5 micron, 4.5" x 20"
(P/N SO72005-BB) |
|
|
A variety of ultraviolet/carbon post-filters are available. |
|
|
