Composite Pressure Tanks
swtwater.com Economy Fiberglass Wrapped & PE Liner

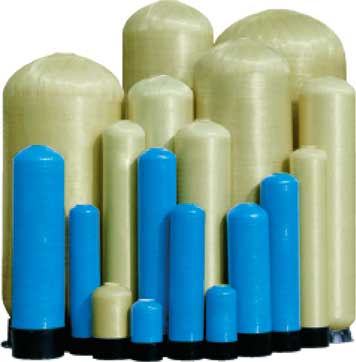

SWT's Economy Fiberglass Wrapped Pressure Vessels with Polyethylene Liner
FEATURES:
• Inner shell constructed of high quality LLDPE or HPPE polyethylene
• Wound with continuous fiberglass to provide superior strength under pressure
• Resists corrosion and provides years of reliable service
• Lightweight tank design makes installation fast and easy
• 150 psi maximum operating pressure
• 120ºF max operating temp (threaded)
150ºF max operating temp (flanged)
• NSF and PED (CE) certified
• Available in almond, blue, black, gray, or natural (standard)
• Made in China


ECONOMY COMPOSITE FIBERGLASS/POLYETHYLENE TANKS
6 Inch Diameter Tanks
Part
Number		 Tank
Size
Inches		 Top
Opening		 Bottom
Opening		 Base
Style		 Volume Height
with Base
Inch (mm)		 Tank
Net Wt.
Lb (kg)		 Case
Qty
Cu.Ft. Gallon
(Liter)
LCW0618C20* 6 x 18 2.5"-8 NPSM — Standard 0.24 1.77
(6.7)		 18.07
(459)		 3.41
(1.55)		 12
LCW0635C20* 6 x 35 2.5"-8 NPSM — Standard 0.48 3.62
(13.7)		 35.08
(891)		 6.05
(2.75)		 20
7 Inch Diameter Tanks
Part
Number		 Tank
Size
Inches		 Top
Opening		 Bottom
Opening		 Base
Style		 Volume Height
with Base
Inch (mm)		 Tank
Net Wt.
Lb (kg)		 Case
Qty
Cu.Ft. Gallon
(Liter)
LCW0713C20* 7 x 13 2.5"-8 NPSM — Standard 0.20 1.53
(5.8)		 13.15
(334)		 3.08
(1.40)		 12
LCW0717C20* 7 x 17 2.5"-8 NPSM — Standard 0.29 2.19
(8.3)		 16.93
(430)		 4.30
(1.95)		 8
LCW0724C20* 7 x 24 2.5"-8 NPSM — Standard 0.45 3.33
(12.6)		 24.09
(612)		 5.40
(2.45)		 20
LCW0735C20* 7 x 35 2.5"-8 NPSM — Standard 0.67 5.05
(19.1)		 35.35
(898)		 7.49
(3.40)		 20
LCW0735C20*-NB 7 x 35 2.5"-8 NPSM — None 0.67 5.05
(19.1)		 35.08
(891)		 7.04
(3.20)		 20
LCW0740C20* 7 x 40 2.5"-8 NPSM — Standard 0.78 5.81
(22.0)		 40.08
(1018)		 8.37
(3.80)		 20
LCW0744C20* 7 x 44 2.5"-8 NPSM — Standard 0.86 6.42
(24.3)		 44.45
(1129)		 8.92
(4.05)		 20
8 Inch Diameter Tanks
Part
Number		 Tank
Size
Inches		 Top
Opening		 Bottom
Opening		 Base
Style		 Volume Height
with Base
Inch (mm)		 Tank
Net Wt.
Lb (kg)		 Case
Qty
Cu.Ft. Gallon
(Liter)
LCW0818C20* 8 x 18 2.5"-8 NPSM — Standard 0.41 3.04
(11.5)		 18.07
(459)		 5.28
(2.40)		 8
LCW0835C20* 8 x 35 2.5"-8 NPSM — Standard 0.88 6.55
(24.8)		 35.35
(898)		 9.15
(4.15)		 18
LCW0835C20*-NB 8 x 35 2.5"-8 NPSM — None 0.88 6.55
(24.8)		 35.08
(891)		 8.58
(3.90)		 18
LCW0840C20* 8 x 40 2.5"-8 NPSM — Standard 1.03 7.69
(29.1)		 40.08
(1018)		 9.98
(4.53)		 18
LCW0844C20* 8 x 44 2.5"-8 NPSM — Standard 1.13 8.48
(32.1)		 44.33
(1126)		 10.58
(4.80)		 18
LCW0844C20N-DI 8 x 44 2.5"-8 NPSM — Standard 1.13 8.48
(32.1)		 — — 1
9 Inch Diameter Tanks
Part
Number		 Tank
Size
Inches		 Top
Opening		 Bottom
Opening		 Base
Style		 Volume Height
with Base
Inch (mm)		 Tank
Net Wt.
Lb (kg)		 Case
Qty
Cu.Ft. Gallon
(Liter)
LCW0918C20* 9 x 18 2.5"-8 NPSM — Standard 0.52 3.88
(14.7)		 18.07
(459)		 5.33
(2.42)		 8
LCW0935C20* 9 x 35 2.5"-8 NPSM — Standard 1.12 8.35
(31.6)		 35.28
(896)		 9.25
(4.20)		 16
LCW0935C20*-NB 9 x 35 2.5"-8 NPSM — None 1.12 8.35
(31.6)		 35.08
(891)		 8.25
(3.75)		 16
LCW0940C20* 9 x 40 2.5"-8 NPSM — Standard 1.28 9.59
(36.3)		 40.08
(1018)		 10.66
(4.84)		 16
LCW0942C20N-DI 9 x 42 2.5"-8 NPSM — Standard 1.35 10.09
(38.2)		 — — 1
LCW0948C20* 9 x 48 2.5"-8 NPSM — Standard 1.58 11.78
(44.6)		 48.35
(1228)		 13.33
(6.05)		 16
10 Inch Diameter Tanks
Part
Number		 Tank
Size
Inches		 Top
Opening		 Bottom
Opening		 Base
Style		 Volume Height
with Base
Inch (mm)		 Tank
Net Wt.
Lb (kg)		 Case
Qty
Cu.Ft. Gallon
(Liter)
LCW1022C20* 10 x 22 2.5"-8 NPSM — Standard 0.81 6.05
(22.9)		 22.01
(559)		 8.05
(3.66)		 16
LCW1035C20* 10 x 35 2.5"-8 NPSM — Standard 1.36 10.15
(38.4)		 35.31
(897)		 11.23
(5.10)		 16
LCW1035C20*-NB 10 x 35 2.5"-8 NPSM — None 1.36 10.15
(38.4)		 35.08
(891)		 10.13
(4.60)		 16
LCW1040C20* 10 x 40 2.5"-8 NPSM — Standard 1.59 11.86
(44.9)		 40.16
(1020)		 12.91
(5.86)		 16
LCW1040C20N-DI 10 x 40 2.5"-8 NPSM — Standard 1.59 11.86
(44.9)		 — — 1
LCW1044C20* 10 x 44 2.5"-8 NPSM — Standard 1.77 13.24
(50.1)		 44.33
(1126)		 14.43
(6.55)		 16
LCW1047C20* 10 x 47 2.5"-8 NPSM — Standard 1.91 14.27
(54.0)		 46.77
(1188)		 15.31
(6.95)		 16
LCW1054C20* 10 x 54 2.5"-8 NPSM — Standard 2.20 16.49
(62.4)		 54.57
(1386)		 17.38
(7.90)		 16
12 Inch Diameter Tanks
Part
Number		 Tank
Size
Inches		 Top
Opening		 Bottom
Opening		 Base
Style		 Volume Height
with Base
Inch (mm)		 Tank
Net Wt.
Lb (kg)		 Case
Qty
Cu.Ft. Gallon
(Liter)
LCW1236C20* 12 x 36 2.5"-8 NPSM — Standard 1.96 14.7
(56)		 36.46
(926)		 13.86
(6.30)		 1
LCW1248C20* 12 x 48 2.5"-8 NPSM — Standard 2.81 21.0
(80)		 48.50
(1232)		 18.50
(8.40)		 1
LCW1252C20* 12 x 52 2.5"-8 NPSM — Standard 3.08 23.1
(87)		 52.68
(1338)		 19.71
(8.95)		 1
LCW1252C40* 12 x 52 4"-8 UN — Standard 3.08 23.1
(87)		 52.48
(1333)		 19.89
(9.04)		 1
LCW1252C50N-DI 12 x 52 4.5"-8 Buttress — Standard 3.43 25.6
(97.0)		 — — 1
13 Inch Diameter Tanks
Part
Number		 Tank
Size
Inches		 Top
Opening		 Bottom
Opening		 Base
Style		 Volume Height
with Base
Inch (mm)		 Tank
Net Wt.
Lb (kg)		 Case
Qty
Cu.Ft. Gallon
(Liter)
LCW1354C20* 13 x 54 2.5"-8 NPSM — Standard 3.73 27.9
(106)		 55.04
(1398)		 23.76
(10.80)		 1
LCW1354C40* 13 x 54 4"-8 UN — Standard 3.73 27.9
(106)		 54.84
(1393)		 23.76
(10.80)		 1
14 Inch Diameter Tanks
Part
Number		 Tank
Size
Inches		 Top
Opening		 Bottom
Opening		 Base
Style		 Volume Height
with Base
Inch (mm)		 Tank
Net Wt.
Lb (kg)		 Case
Qty
Cu.Ft. Gallon
(Liter)
LCW1447C50N-DI 14 x 47 4.5"-8 Buttress — Standard 3.64 27.2
(103)		 — — 1
LCW1465C20* 14 x 65 2.5"-8 NPSM — Standard 5.23 39.1
(148)		 65.91
(1674)		 32.60
(14.80)		 1
LCW1465C40* 14 x 65 4"-8 UN — Standard 5.23 39.1
(148)		 65.91
(1674)		 32.60
(14.80)		 1
LCW1465C44*T 14 x 65 4"-8 UN 4"-8 UN Tripod 5.23 39.1
(148)		 73.15
(1858)		 32.80
(14.91)		 1
16 Inch Diameter Tanks
Part
Number		 Tank
Size
Inches		 Top
Opening		 Bottom
Opening		 Base
Style		 Volume Height
with Base
Inch (mm)		 Tank
Net Wt.
Lb (kg)		 Case
Qty
Cu.Ft. Gallon
(Liter)
LCW1628C20* 16 x 28 2.5"-8 NPSM — Standard 2.69 20.1
(76)		 28.94
(735)		 23.02
(10.46)		 1
LCW1628C40* 16 x 28 4"-8 UN — Standard 2.69 20.1
(76)		 28.94
(735)		 23.02
(10.46)		 1
LCW1665C20* 16 x 65 2.5"-8 NPSM — Standard 6.86 51.3
(194)		 65.79
(1671)		 41.03
(18.65)		 1
LCW1665C40* 16 x 65 4"-8 UN — Standard 6.86 51.3
(194)		 65.79
(1671)		 41.03
(18.65)		 1
LCW1665C44* 16 x 65 4"-8 UN 4"-8 UN Tripod 6.86 51.3
(194)		 73.27
(1861)		 41.03
(18.65)		 1
18 Inch Diameter Tanks
Part
Number		 Tank
Size
Inches		 Top
Opening		 Bottom
Opening		 Base
Style		 Volume Height
with Base
Inch (mm)		 Tank
Net Wt.
Lb (kg)		 Case
Qty
Cu.Ft. Gallon
(Liter)
LCW1836C40* 18 x 36 4"-8 UN — Standard 4.88 36.4
(138)		 39.37
(1000)		 41.1
(18.7)		 1
LCW1865C40* 18 x 65 4"-8 UN — Standard 9.51 71.1
(269)		 67.80
(1722)		 67.1
(30.5)		 1
21 Inch Diameter Tanks
Part
Number		 Tank
Size
Inches		 Top
Opening		 Bottom
Opening		 Base
Style		 Volume Height
with Base
Inch (mm)		 Tank
Net Wt.
Lb (kg)		 Case
Qty
Cu.Ft. Gallon
(Liter)
LCW2136C40* 21 x 36 4"-8 UN — Standard 5.80 43.3
(164)		 39.45
(1002)		 53.0
(24.1)		 1
LCW2162C40* 21 x 62 4"-8 UN — Standard 12.16 90.9
(344)		 67.76
(1721)		 73.7
(33.5)		 1
LCW2162C44*T 21 x 62 4"-8 UN 4"-8 UN Tripod 11.66 87.2
(330)		 81.25
(2064)		 94.3
(42.9)		 1
LCW2162C60* 21 x 62 6" SNA Flange — Standard 11.66 87.2
(330)		 70.08
(1780)		 108.1
(49.1)		 1
LCW2162C66*T 21 x 62 6" SNA Flange 6" SNA Flange Tripod 11.66 87.2
(330)		 83.78
(2128)		 122.3
(55.6)		 1
24 Inch Diameter Tanks
Part
Number		 Tank
Size
Inches		 Top
Opening		 Bottom
Opening		 Base
Style		 Volume Height
with Base
Inch (mm)		 Tank
Net Wt.
Lb (kg)		 Case
Qty
Cu.Ft. Gallon
(Liter)
LCW2465C40* 24 x 65 4"-8 UN — Standard 15.01 112.3
(4.25)		 67.60
(1717)		 110.2
(50.1)		 1
LCW2472C40* 24 x 72 4"-8 UN — Standard 16.71 125.0
(473)		 75.51
(1918)		 119.2
(54.2)		 1
LCW2472C44*T 24 x 72 4"-8 UN 4"-8 UN Tripod 16.71 125.0
(473)		 85.35
(2168)		 121.1
(55.0)		 1
LCW2472C60* 24 x 72 6" SNA Flange — Standard 17.35 129.7
(491)		 77.68
(1973)		 129.4
(58.8)		 1
LCW2472C66*T 24 x 72 6" SNA Flange 6" SNA Flange Tripod 17.35 129.7
(491)		 87.48
(2222)		 142.1
(64.6)		 1
30 Inch Diameter Tanks
Part
Number		 Tank
Size
Inches		 Top
Opening		 Bottom
Opening		 Base
Style		 Volume Height
with Base
Inch (mm)		 Tank
Net Wt.
Lb (kg)		 Case
Qty
Cu.Ft. Gallon
(Liter)
LCW3072C40* 30 x 72 4"-8 UN — Standard 25.02 187.1
(708)		 72.28
(1836)		 199.1
(90.5)		 1
LCW3072C60* 30 x 72 6" SNA Flange — Standard 24.88 186.0
(704)		 74.49
(1892)		 207.7
(94.4)		 1
LCW3072C66*T 30 x 72 6" SNA Flange 6" SNA Flange Tripod 24.88 186.0
(704)		 86.57
(2199)		 220.5
(100.1)		 1
36 Inch Diameter Tanks
Part
Number		 Tank
Size
Inches		 Top
Opening		 Bottom
Opening		 Base
Style		 Volume Height
with Base
Inch (mm)		 Tank
Net Wt.
Lb (kg)		 Case
Qty
Cu.Ft. Gallon
(Liter)
LCW3657C60* 36 x 57 6" SNA Flange — Standard 28.76 215.1
(814)		 63.70
(1618)		 215.4
(97.9)		 1
LCW3657C66*T 36 x 57 6" SNA Flange 6" SNA Flange Tripod 27.42 205.0
(776)		 75.31
(1913)		 235.2
(106.9)		 1
LCW3657C66N-DI 36 x 57 6" SNA Flange 6" SNA Flange Pipe 28.76 215.1
(814)		 — — 1
LCW3672C40* 36 x 72 4"-8 UN — Standard 34.77 260.0
(984)		 73.07
(1856)		 270.2
(122.8)		 1
LCW3672C60* 36 x 72 6" SNA Flange — Standard 35.27 263.7
(998)		 75.43
(1916)		 273.7
(124.4)		 1
LCW3672C66*T 36 x 72 6" SNA Flange 6" SNA Flange Tripod 35.26 263.7
(998)		 87.13
(2213)		 291.7
(132.6)		 1
LCW3672C66N-DI 36 x 72 6" SNA Flange 6" SNA Flange Pipe 34.28 256.3
(970)		 — — 1
42 Inch Diameter Tanks
Part
Number		 Tank
Size
Inches		 Top
Opening		 Bottom
Opening		 Base
Style		 Volume Height
with Base
Inch (mm)		 Tank
Net Wt.
Lb (kg)		 Case
Qty
Cu.Ft. Gallon
(Liter)
LCW4263C66N-DI 42 x 63 6" SNA Flange 6" SNA Flange Pipe 45.00 337
(1274)		 — — 1
LCW4272C66*T 42 x 72 6" SNA Flange 6" SNA Flange Tripod 52.80 395
(1494)		 94.33
(2396)		 473
(215)		 1
LCW4272C66N-DI 42 x 72 6" SNA Flange 6" SNA Flange Tripod 52.80 395
(1494)		 — — 1
48 Inch Diameter Tanks
Part
Number		 Tank
Size
Inches		 Top
Opening		 Bottom
Opening		 Base
Style		 Volume Height
with Base
Inch (mm)		 Tank
Net Wt.
Lb (kg)		 Case
Qty
Cu.Ft. Gallon
(Liter)
LCW4872C66*T 48 x 72 6" SNA Flange 6" SNA Flange Tripod 66.96 501
(1895)		 94.45
(2399)		 543
(247)		 1
63 Inch Diameter Tanks
Part
Number		 Tank
Size
Inches		 Top
Opening		 Bottom
Opening		 Base
Style		 Volume Height
with Base
Inch (mm)		 Tank
Net Wt.
Lb (kg)		 Case
Qty
Cu.Ft. Gallon
(Liter)
LCW6367C66*T 63 x 67 6" SNA Flange 6" SNA Flange Tripod 86.61 648
(2451)		 80.47
(2044)		 673
(306)		 1
LCW6386C66*T 63 x 86 6" SNA Flange 6" SNA Flange Tripod 116.82 874
(3306)		 97.44
(2475)		 792
(360)		 1
*   Specify color: 'A'=Almond; 'B'=Blue; 'G'=Gray; 'K'=Black; 'N'=Natural. If not specified, SWT will supply Natural.


VACUUM PROTECTION & FLEX CONNECTORS
Fiberglass/composite pressure vessels are rated for an internal negative pressure of 5-inches Hg (17 Pa) vacuum below atmospheric. If negative pressure could ever exceed 5-inches Hg (17 Pa), an adequate vacuum breaker must be installed between the pressure vessel inlet and any valves (see illustration right). For enclosed tank applications, the vacuum breaker should be installed at the highest location in the system plumbing.

System connections to the pressure vessel must accomodate vertical expansion between side, top, and bottom openings. Either flexibility in piping or flex connectors, as shown here, are recommended.
SWT Vacuum Breaker and Flex Connector installation diagram

See SWT Vacuum Protection
and Flex Connector Products



Safe Water Technologies, Inc.
996 Bluff City Boulevard
Elgin, IL 60120 USA


Telephone: +1.847.888.6900
Facsimile: +1.847.888.6924
E-mail: info@swtwater.com
https://www.swtwater.com

Last Updated: October 28, 2024
