| Hy-Lite Water Quality Indicator Systems incorporate exclusive Auto Temperature Compensation (ATC) and Surface Mount Technology (SMT) circuitry for unequaled accuracy. Proper TC design is especially important in high purity applications because the effect of temperature on resistivity/conductivity values varies significantly with purity level. For increased accuracy, the Hy-Lite ATC has been range-tuned to the appropriate TC factor for the particular setpoint resistivity. |
 |
 |
 |
| REMOTE ALARM MODULE |
RELAY MODULE |
|
|
| A flashing red LED and integral audible alarm (non-alarm optional) insures fast response to changing water quality. |
| Hy-Lites can perform as a controller or remote indicator by connecting Relay and Remote Alarm Modules to the output port. |
| An insertion style resistivity cell with stainless steel electrodes allows for easy installation and rotational positioning in standard 1/2 or 3/4 inch threaded tees. |
|
|
| SPECIFICATIONS |
|
| Accuracy: |
± 3% @ 5 to 45°C (41 to 113°F) |
| Repeatability: |
± 1% |
| Temperature Compensation: |
Automatic to 25°C (77°F) from 5 to 45°C |
| Setpoints (single fixed): |
25, 50, 100, 200, 500 kilohm-cm @ 25°C
1, 2, 3, 5 megohm-cm @ 25°C |
| Visual Display: |
Steady green and flashing red LEDs |
| Audible Alarm: |
Peizo-electric with membrane reset switch;
> 70 dB @ 3 feet, 4 kHz ± 10% |
| Circuitry: |
Surface Mount Technology (SMT) |
| Input Power: |
12 VDC (isolated); 30 mA |
| Transformer: |
Plug-in, class 2, UL & CSA approved,
Input 110 VAC, 50-60 Hz / Output 12 VDC @ 200 mA,
integral 6 ft cable (alternate transformers available) |
| Hy-Lite to Hy-Lite Patchcord: |
8 ft with male termination |
| Module Interconnection: |
4 wire, 26 gauge, UL4110 telephone cable
with FCC 68 modular handset connectors |
| Materials of Construction: |
Wetted: 303 SS, ABS, polypropylene, Viton
Non-Wetted: ABS enclosure, polyester labels |
| Operating Pressure: |
0 to 150 psi |
| Fittings: |
1/2 or 3/4 inch MNPT provided |
| Dimensions: |
6 inch length, 2 inch width, 2 inch height |
|
| HY-LITE WITH ALARM |
HY-LITE WITHOUT ALARM |
| PART NUMBER |
SETPOINT |
| CH-HLA-025K |
25 kilohm-cm |
| CH-HLA-050K |
50 kilohm-cm |
| CH-HLA-100K |
100 kilohm-cm |
| CH-HLA-200K |
200 kilohm-cm |
| CH-HLA-500K |
500 kilohm-cm |
| CH-HLA-001M |
1 megohm-cm |
| CH-HLA-002M |
2 megohm-cm |
| CH-HLA-003M |
3 megohm-cm |
| CH-HLA-005M |
5 megohm-cm |
|
| PART NUMBER |
SETPOINT |
| CH-HLS-025K |
25 kilohm-cm |
| CH-HLS-050K |
50 kilohm-cm |
| CH-HLS-100K |
100 kilohm-cm |
| CH-HLS-200K |
200 kilohm-cm |
| CH-HLS-500K |
500 kilohm-cm |
| CH-HLS-001M |
1 megohm-cm |
| CH-HLS-002M |
2 megohm-cm |
| CH-HLS-003M |
3 megohm-cm |
| CH-HLS-005M |
5 megohm-cm |
|
|
| ADDITIONAL EQUIPMENT AND ACCESSORIES |
| PART NUMBER |
DESCRIPTION |
| CH-RMA |
Remote Alarm Module |
| CH-RMR |
Relay Module |
| CH-RMAR |
Remote Alarm Module with Re-Alarm |
| CH-HLTR-A |
Transformer, US, 110 AC/12VDC, 8 ft |
| CH-HLTR-B |
Transformer, Euro, 230VAC/50Hz/12VDC |
| CH-HLPC-8 |
Hy-Lite to Hy-Lite Patchcord, 8 ft |
| CH-RPC-010 |
Hy-Lite to Remote Module Cable, 10 ft |
| CH-RPC-050 |
Hy-Lite to Remote Module Cable, 50 ft |
| CH-RPC-100 |
Hy-Lite to Remote Module Cable, 100 ft |
| CH-RPC-200 |
Hy-Lite to Remote Module Cable, 200 ft |
|
|
| CONVERSION CHART |
Resistivity
(ohm-cm) |
Conductivity
(μS/cm) |
~ TDS ± 15%
(ppm) |
| 25K |
40 |
20 |
| 50K |
20 |
10 |
| 100K |
10 |
5 |
| 200K |
5 |
2.5 |
| 500K |
2 |
1.0 |
| 1 MEG |
1 |
0.50 |
| 2 MEG |
0.5 |
0.25 |
| 3 MEG |
0.3 |
0.16 |
| 5 MEG |
0.2 |
0.10 |
|
| IDENTIFICATION DRAWING |
 |
|
| APPLICATION |
 |
|
| UNIT-TO-UNIT POWER |
 |

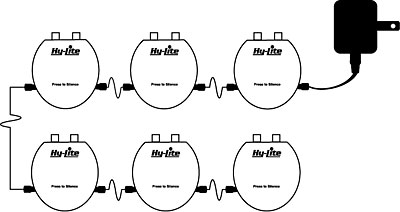

| Up to six (6) Hy-Lites can be powered with a single power supply by connecting the Hy-Lites to each other using patchcord CH-HLPC-8 (sold separately). |
|
| CONTROL AND REMOTE ALARM CAPABILITY |

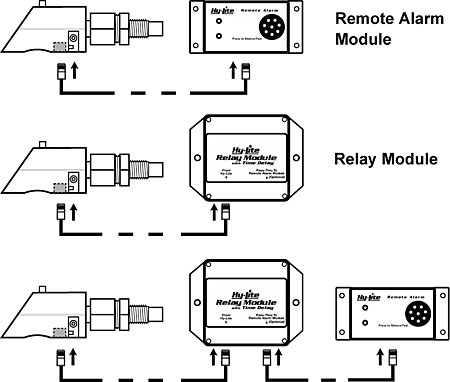

| Hy-Lites have an output port for connection to Relay and/or Remote Alarm Modules at distances up to 700 feet! Telephone type cable/connectors result in fast and easy installation. |
 |
The Remote Alarm Module has a peizo alarm, green and red LEDs, and silence switch to duplicate the operational status of the connected Hy‑Lite. Both units act as a system—silencing the alarm at either location will silence both alarms. The alarm module is housed in a wall mountable enclosure and can be ordered with an optional auto re-alarm feature.
Enclosure: ABS plastic, 3-1/8" x 2" x 1-3/8" with 4-3/8" x 2" mounting plate |
The Relay Module allows the Hy-Lite to perform as a controller of valves, custom alarm systems, etc. A 1 amp SPDT undedicated relay features an adjustable time delay to compensate for expected equipment rinse-up times. There is also a signal pass-thru feature permitting the relay module to be used with the remote alarm module.
Enclosure: ABS plastic, 4.3" x 3.2" x 1.35" |
|
| |
|
