| No. |
Drawing |
Qty |
Description |

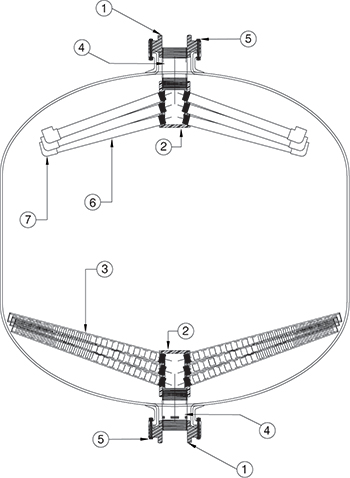

| 1 |
 |
2 |
Flange Adapter 6" SNA x 4" Socket PVC with EPDM Gasket, 4" FNPT Inside Tank, 4" Socket Outside Tank with 12 Bolt Holes, 9-3/8" OD x 4" Height
View Upper Photo View Lower Photo |
| 2 |
 |
2 |
Hub 4" FNPT, 21 each of 1" FNPT Type A Lateral Ports, 3 Rows of 7 Lateral Ports at 15°, 18°, and 20° (Faced), 5-1/2" OD x 7-1/4" Height
View Photo |
| 3 |
 |
21 |
Lateral S80 1" MPT x 28" OAL, 0.010 Slots, 1.315" OD x 28" OAL
View Photo |
| 4 |
< |
2 |
Nipple 4" MPT x 7", 0.010" Slots,
5 Rows x 2 Slots on Each End,
4-1/2" x 7" OAL |
| 5 |
 |
1 |
Hardware Kit SS304 for 6" SNA Flange Adapter with
24 each of Washers, 12 each of Lock Washers,
12 each of Nuts, 12 each of Bolts |
| 6 |
 |
21 |
Nipple 1" NPT x 12" Machine Threaded Both Ends (TBE)
View Photo |
| 7 |
 |
21 |
Elbow 90° 1" FNPT x Socket
2.4" Length x 2.25" Width x 1.625" OD
View Photo |
|
