Ultraviolet Purifiers

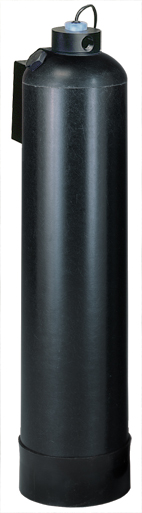

swtwater.com Spectrum 10 Plus™
Whole House Chemical & Bacteria Treatment System
Spectrum 10 Plus™ is the first affordable water treatment system to treat all of the home's drinking, cooking, and bath water. Spectrum 10 Plus™ will remove, or significantly reduce, over 50 carcinogenic chemicals listed by the EPA and also disinfect the entire home's water supply against harmful pathogenic bacteria such as E. Coli, baccilary dysentary, typhoid, cholera, and others (see below).

How the Spectrum 10 Plus System Works
This system is capable of not just treating 10 or 20 gallons
of water per day, but is capable of actually filtering hundreds of
gallons per day. It will treat all the water for every sink,
faucet, shower, and bath tub throughout the home.
How the System Works:
The First Stage: The water enters a compacted bed of steam activated carbon. This removes unpleasant taste and odors, and also chlorine, pesticides, THM's, PCB's, and other common chemicals that have been found in water supplies and have been defined as carcinogenic by the EPA.
The Second Stage: The water enters a #304 stainless steel disinfecting chamber which bombards bacteria, viruses, and harmful microorganisms with high levels of ultraviolet light and renders them harmless. This process of purification works without chemicals and leaves no residual in the water. Ultraviolet irradiation is now accepted by both the EPA and the FDA as a safe, effective method of sterilization.

Spectrum 10 Plus™ delivers a minimum of 30,000 microwatt seconds/cm² at 10 gpm

Specifications
Capacity @ 10 mic. Clear Water: 10 gpm (38 lpm) Lamp Hours: 9000 hours
Connection Size: 1 inch FPT (3/4 inch FPT available) Maximum Current: 0.56 amp
Working Pressure: 150 psi (10 atmos) Maximum Watts: 64 watts


Spectrum 10 Plus™ Models
Part Number Carbon
Included
Tank Size
Inches
GPM Connection
Size
Approx.
Weight
SWT10000S/1 None 9 x 40 FRP 10 1 inch FPT* 30 lb (14 kg)
SWT10000C/1 1 cu.ft. Coconut Shell 9 x 40 FRP 10 1 inch FPT* 55 lb (25 kg)
SWT10000SC/1 1 cu.ft. SuperCat™ Coconut Shell 9 x 40 FRP 10 1 inch FPT* 55 lb (25 kg)
SWT10000C/1-1248 1 cu.ft. Coconut Shell 12 x 48 FRP 10 1 inch FPT* 90 lb (41 kg)
SWT10000SC/1-1248 1 cu.ft. SuperCat™ Coconut Shell 12 x 48 FRP 10 1 inch FPT* 90 lb (41 kg)
* 3/4 inch FPT connections available upon request.


Replacement Parts
BALLAST — Electronic (P/N SWT10003EF)
UV LAMP — 10.0 GPM (P/N IL10001)
QUARTZ SLEEVE (P/N IL30001)
QUARTZ SLEEVE O-RING (P/N UL-118RS)
TANK HEAD O-RING (P/N UL-240)
PROACTIVE™ COCONUT SHELL CARBON — 12 x 40 mesh (P/N IT50002C)
PROACTIVE™ COCONUT SHELL CARBON — 20 x 50 mesh (P/N IT50003C)
PROACTIVE™ SUPERCAT™ COCONUT SHELL CARBON — 12 x 40 mesh (P/N IT50002SC)
PROACTIVE™ SUPERCAT™ COCONUT SHELL CARBON — 20 x 50 mesh (P/N IT50003SC)
CHLORASTICK™ PIPE SANITIZING KIT — Inline Module, 1 inch Union Connection (P/N APS-CSRA-1-9)


The Spectrum 10 Plus™ Water Purification System will remove completely, or reduce significantly, the following contaminants, and more, from water:

First Stage
Adipates (diethylhexyl)
Alachor
Aldicarb
Atrazine
Benz (a) anthracine (PAH)
Benzene
Benzo
Butyl benzyl phthalate (PAE)
Carbofuran
Carbon tetrachloride
Chlordane
Chlorine
Chrysene
Color
Dalapon
Di (20ethylhexl) adipate
Dibenz (a,h) antracene
Dibromochloropropane
Dichlorobenzene
Dichloroethane (1,2-)
Dichloroethylene
Dichloropropane
Diethylhexyl phthalate (PAE)
Dinoseb
Diquat
Endothall
Endrin
Ethylbenzene
Ethelene dibromide (EDB)
Glyphosate
Heptachlor
Hexachlorobenzene
Hexachlorocyclopentadiene
Indo (1,2,3-c,d) pyrene (PAH)
Lidane
Mercury (organic complexes)
Methoxychlor
Methylene Blue
Monochlorobenzene
Odor
Organic color
Organics
Oxymal
Pentachlorophenal
Picloram
PCB's
Sediment
Simarzine
Styrene
2,3,7,8-TCDD (dioxin)
2,4,5-TP (silvex)
Taste
TCB's
TCE's
Tetrachloroethylene
THM's
Toulene
Toxaphane
Vinyl chloride
Xylenes

Second Stage
Bacillus anthracis
Bacteria
Coliform bacteria
Corynebacteium diphtheria
Dysentery
E. coli
Hepatitus virus
Influenza virus
Polio virus
Salmonella
S. typhosa
Shigella dysenteriae
Spirillum rubrum
Staphlylococcus
Streptococcus hemolyticus
Vibrio cholerae
Viruses
